Selecting a Compensator



2. Calculate the optimum Center-of-Compliance (C-of-C):

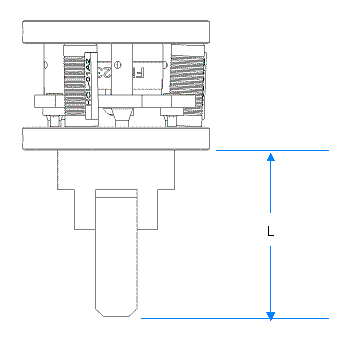

Calculate the total distance L, from the tool (bottom) plate of the Compensator to the initial contact point of the part being inserted (see figure below). Take into account any interface plates. Select the model with a C-of-C within 30% of the distance L. It is better to have a C-of-C below the insertion point than above it. If the fit between the peg and the hole is loose, a model with a C-of-C within 60% of distance L is allowable.

<< STEP 1    STEP 3 >>
