Ethernet/EtherNetIP/EtherCAT/PROFINET 100Mb Pass-Through Modules: VL1


Skip Navigation Linksホーム > 製品 > ロボット式ツールチェンジャ > モジュールとアクセサリ > モジュール > 制御と信号のモジュール > VL1





Product Advantages
  • Enable the customer to control and communicate with the Tool Changer through a network using an EtherCAT interface.
  • Control of the Tool Changer is realized through the Master along with the reporting of various Tool Changer I/O.
  • The Tool modules supports Tool-ID reported through the Master and functions as a pass-through for EtherCAT network and power to downstream equipment.
  • Supports the use of an integrated single or double solenoid valve which is provided on the valve adapter module for Latch/Unlatch control of the Tool Changer.
  • In addition to supporting the standard Tool Changer input signals (Locked, Unlocked, and Ready-to-Lock proximity sensors) the modules also support advanced diagnostic and fault reporting.
  • A standard 5-Pin Minifast connector is provided on the Master and Tool modules for interfacing with Auxiliary Power.
  • A standard M12 D-Coded 4-Pin connector is provided on the Master and Tool modules for interfacing with EtherCAT.
  • When the Tool Changer is coupled, the Master and Tool modules pass signals via a spring-loaded pin block.
  • A flexible boot surrounds the pin block to seal the connection from moisture and liquid while coupled.
  • The modules are designed with a Safety circuit to allow the Tool Changer to be operated in the safest manner possible. To avoid unintentional Tool release, the power for the unlatch valve is routed through a safety switch connector. A safety switch must be connected to support this function.

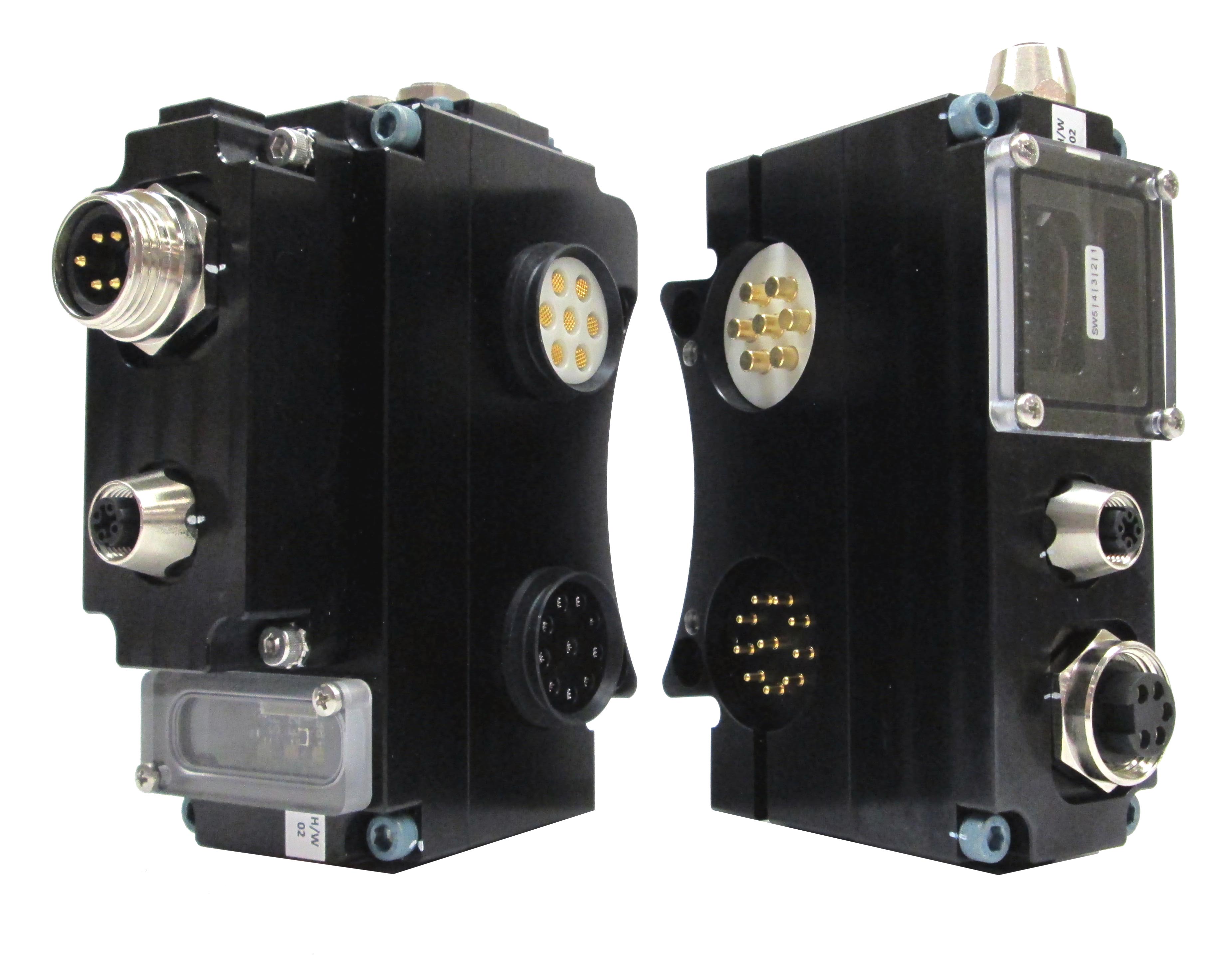

VL1 Modules (Master and Tool)
VL1 Modules (Master and Tool)

Part NumberSideNotesEDS File
9121-VL1-MMEtherCAT Control Module Assembly - Master side9031-20-1050.zip
9121-VL1-TTEtherCAT Control Module Assembly - Tool side9031-20-1050.zip

SpecificationsCompatible QCsConnectors and CablesDrawingsManuals3D CAD Models

Description: EtherCAT Control Module Assembly
Weight: Master 2.17 lbs (0.98 kg)
Tool 1.62 lbs (0.73 kg)
Materials:
  • Anodized aluminum housing
  • Precious-metal-plated spring and contact pins
  • Nitrile seals.
# Pins: Auxiliary Power - 5
EtherCAT - 4
Integrated Tool Changer I/O - (4) 3
Integrated Connection to Valve Adapter - 3
Elec. Rating: EtherCAT - 3 Amp/30VDC max.
US1 Power - 220mA @ 24VDC
US2 Power - 250mA @ 24VDC
Operational Temperature Range: -20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC)
