Discrete Modules: VB11

Product Advantages

The Discrete Signal Integrated Valve module allows for control of the Tool Changer and discrete signal pass-through to the End-of-Arm Tooling.
DDK, MS-style connector provided for customer interface.
An integrated single or double solenoid valve (available on the Jxx valve adapter with pass-through module) controls the Tool Changer locking mechanism.
Ready-to-Lock (R1 and R2), Lock, and Unlock sensor inputs supported.
Up to 22 pass-through signals available for customer use.
A flexible boot surrounds the pin block and seals the connection from moisture while coupled.
Patented Tool Stand Interlock (TSI) technology is provided through a connector on the Tool module. Integration of a mechanical limit switch will allow the integrated solenoid valve to uncouple the Tool Changer ONLY when the Tool is in the Stand.
Tool-ID (0-9) available.
Compact design package.

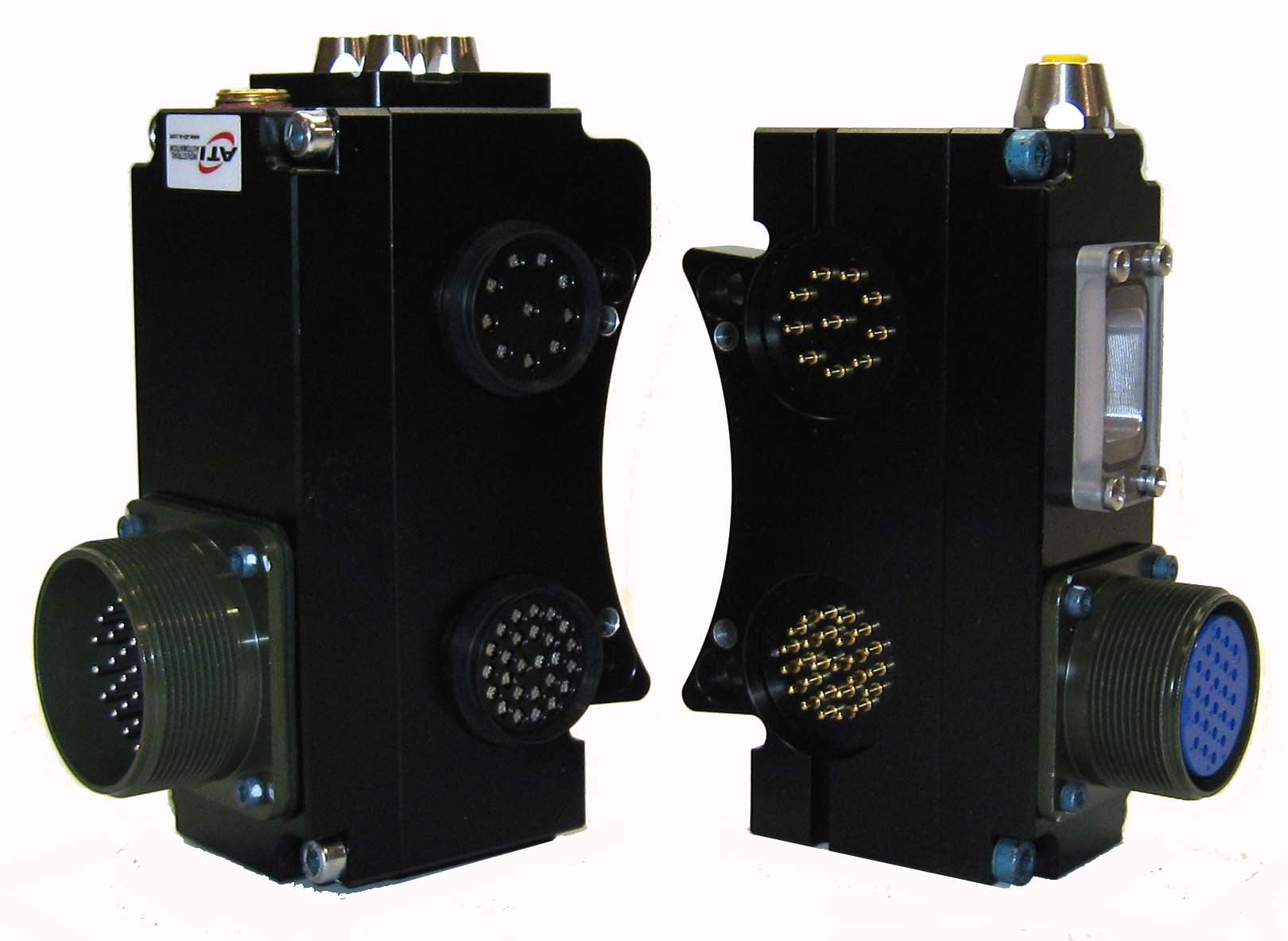

VB11 Modules (Master and Tool)

Part Number	Side	Notes	EDS File
9121-VB11-M	M	Discrete Module, Supports L/U/R1/R2 PNP Sensors and Integrated Valve, 35-Pin DDK (MS Style) Connector, TSI on Tool, 0-9 Tool-ID, 22 Pass-Through - Master side
9121-VB11-T	T	Discrete Module, 24-Pin Amphenol (MS-style) Connector, TSI on Tool, 0-9 Tool-ID, 22 Pass-through - Tool side
9121-VB13-T	T	Discrete Module, 24-Pin Amphenol (MS Style) Connector, TSI on Tool, 0-99 Tool-ID, 18 Signal Pass-Through - Tool side

Specifications

Compatible QCs

Connectors and Cables

Drawings

Manuals

3D CAD Models

Description:

Discrete Module, Supports L/U/R1/R2 PNP Sensors and Integrated Valve, 35-Pin DDK (MS Style) Connector, TSI on Tool, 0-9 Tool-ID, 22 Pass-Through

Weight:

VB11 Master 1.70 lbs (0.77 kg)
VB11 Tool 1.45 lbs (0.66 kg)
VB13 Tool x.x lbs (x.x kg)

Materials:

Elec. Rating:

Control signals - 24VDC
Pass-through signals - 5 Amp/250V

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
