Description: |

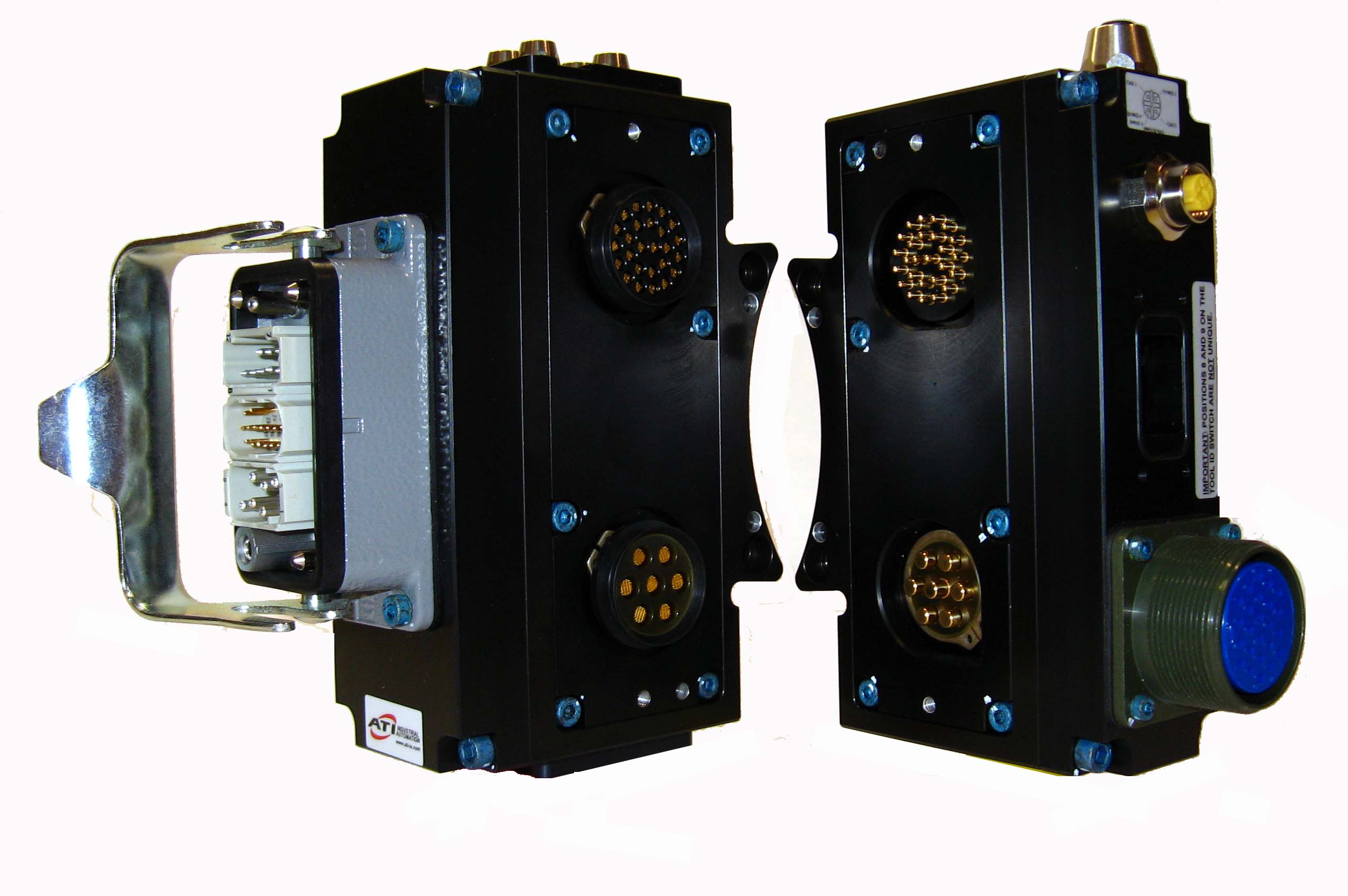

Harting Module that supports Servo Power and Encoder Signals, PROFIBUS Pass Thru, Supports L/U/R1/R2 Sensors and Integrated Valve, Supports TSI on Tool |
|
Weight: |
Master 3.10 lbs (1.41 kg)
Tool 2.75 lbs (1.25 kg) |
|
Materials: |
- Aluminum housings/covers
- Clear polycarbonate window
- Precious-metal-plated contacts
- Nitrile seals
- Delrin pin block.
|
|
Elec. Rating: |
Power - 7 @ 13 Amp/500V
Signal - 17 @ 3 Amp/24V
Tool Changer (TSI and Tool-ID) - 6 @ 3 Amp/24V
Fieldbus - 2 @ 3 Amp/24V |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
