| 9120-RK12-M | M | Electrical Module with 12-pin pass-through, 12-Pin M23 connector, Power 5 Amps/150VDC - Master side |
| 9120-RK12R-M | M | Electrical Module with 12-pin pass-through, 12-Pin M23 connector, Power 5 Amps/150VDC, Signal 2 Amps/30V, Right angle sensor cables - Master side |
| 9120-RK12-T | T | Electrical Module with 12-pin pass-through, 12-Pin M23 connector, Power 5 Amps/150VDC - Tool side |
|
|
Description: |

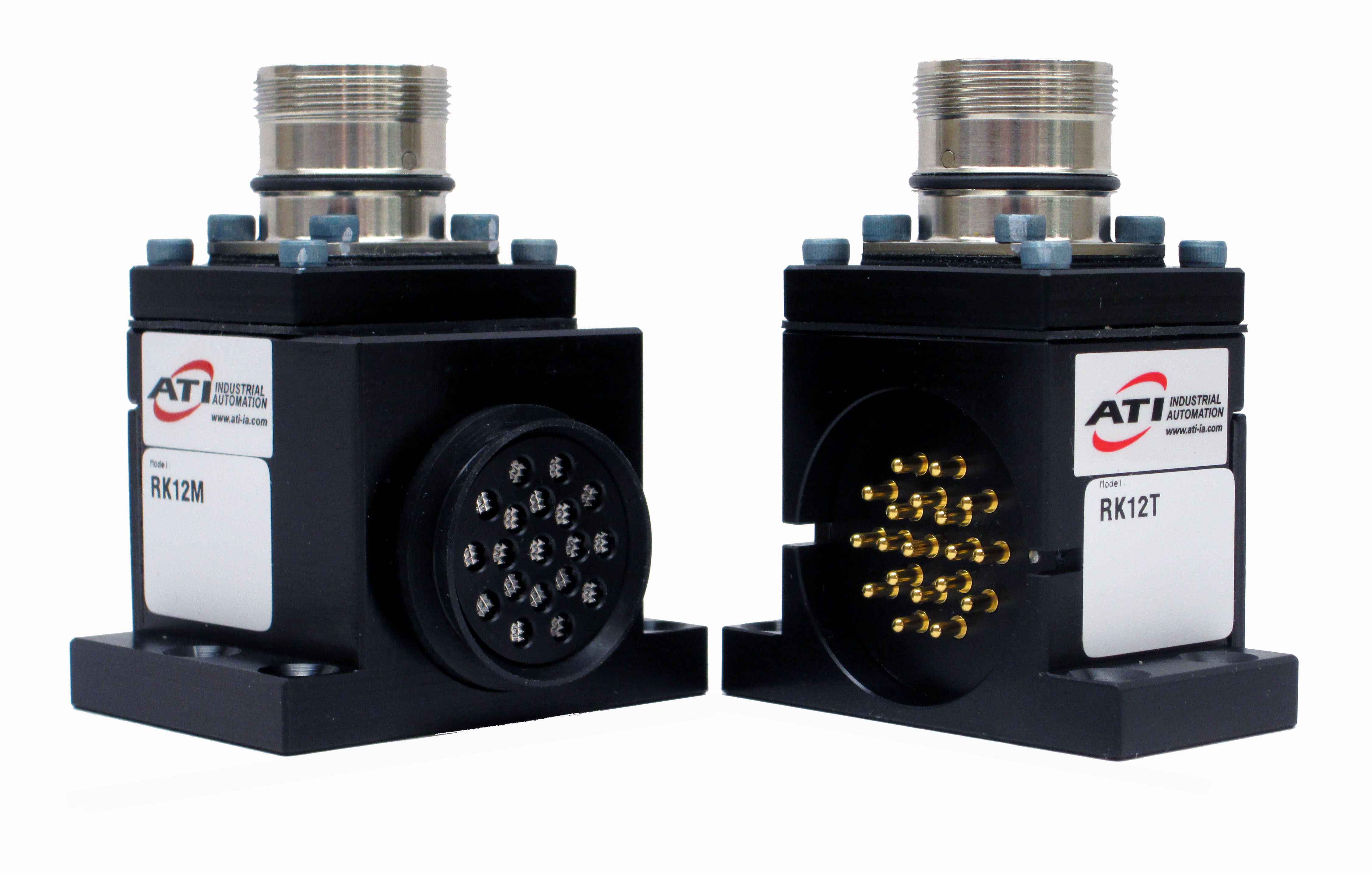

Electrical Module with 12-pin pass-through, 12-Pin M23 connector, Power 5 Amps/150VDC, Signal 2 Amps/30V |
|
Weight: |
RK12 Master: 0.49 lbs (0.22 kg)
RK12R Master: 0.49 lbs (0.22 kg)
RK12 Tool 0.36 lbs (0.16 kg) |
|
Materials: |
- Aluminum housing
- Rhodium-plated contact pins
- Nitrile seal.
|
|
Elec. Rating: |
Power - 5 Amps/150VDC
Signal - 2 Amps/30V |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-RK12.pdf |
RK12 Module Drawing
|
| 9630-20-RK12RM RK12T.pdf |
RK12R-M,RK12-T Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-RK12-M |
Electrical Master module with 12-pin pass-through, 12-Pin M23 connector
|
| 9120-RK12-T |
Electrical Tool module with 12-pin pass-through, with 12-Pin M23 connector
|
|
|
