Servo Modules: RES10

Product Description

Power and signal circuits are electrically isolated both from each other and the Tool Changer.
Both the power and signal circuits are designed to be water-resistant, but they are not waterproof.
Compliant spring probes are provided on the Master and fixed contact pins on the Tool.
Master spring pins are recessed below an insulated surface on both the power and signal circuits.
DANGER! - For electrical modules using > 60 VDC or 42 VAC, NO contact should be attempted before removing power. This especially includes separation or insertion of the mating connectors or any contact with the tool changer or its components.

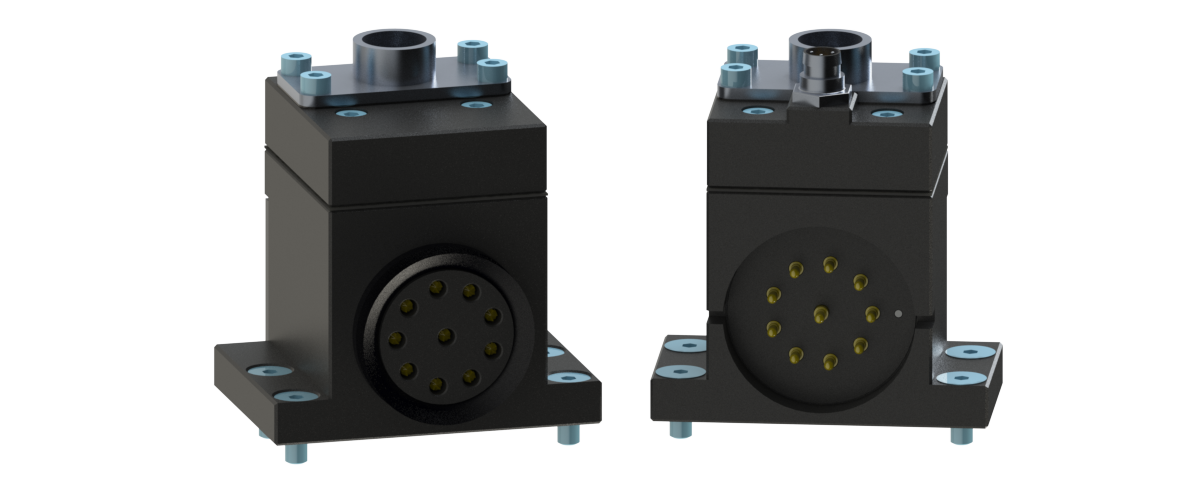

RES10 Master and Tool Modules

Part Number	Side	Notes

9120-RES10-M	M	Servo Signal Module with 10-pin JAE connector - Master Side
9120-RES10-T	T	Servo Signal Module with 10-pin JAE connector - Tool Side

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Description:

Servo Signal Module with 10-pin JAE connector

Weight:

Master 0.50 lbs (0.23 kg)
Tool 0.36 lbs (0.16 kg)

Materials:

# Pins:

Power/Signal - 10
Battery Backup - 3

Elec. Rating:

3 Amp/150V max

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
