Servo Modules: REP10


Skip Navigation Links





Product Advantages
  • Power circuits are electrically isolated both from each other and the Tool Changer.
  • Power circuits are designed to be water-resistant, but they are not waterproof.
  • Compliant spring probes are provided on the Master and fixed contact pins on the Tool.
  • Master spring pins are recessed below an insulated surface on both the power circuits.
  • DANGER! - For electrical modules using > 60 VDC or 42 VAC, NO contact should be attempted before removing power. This especially includes separation or insertion of the mating connectors or any contact with the Tool Changer or its components.

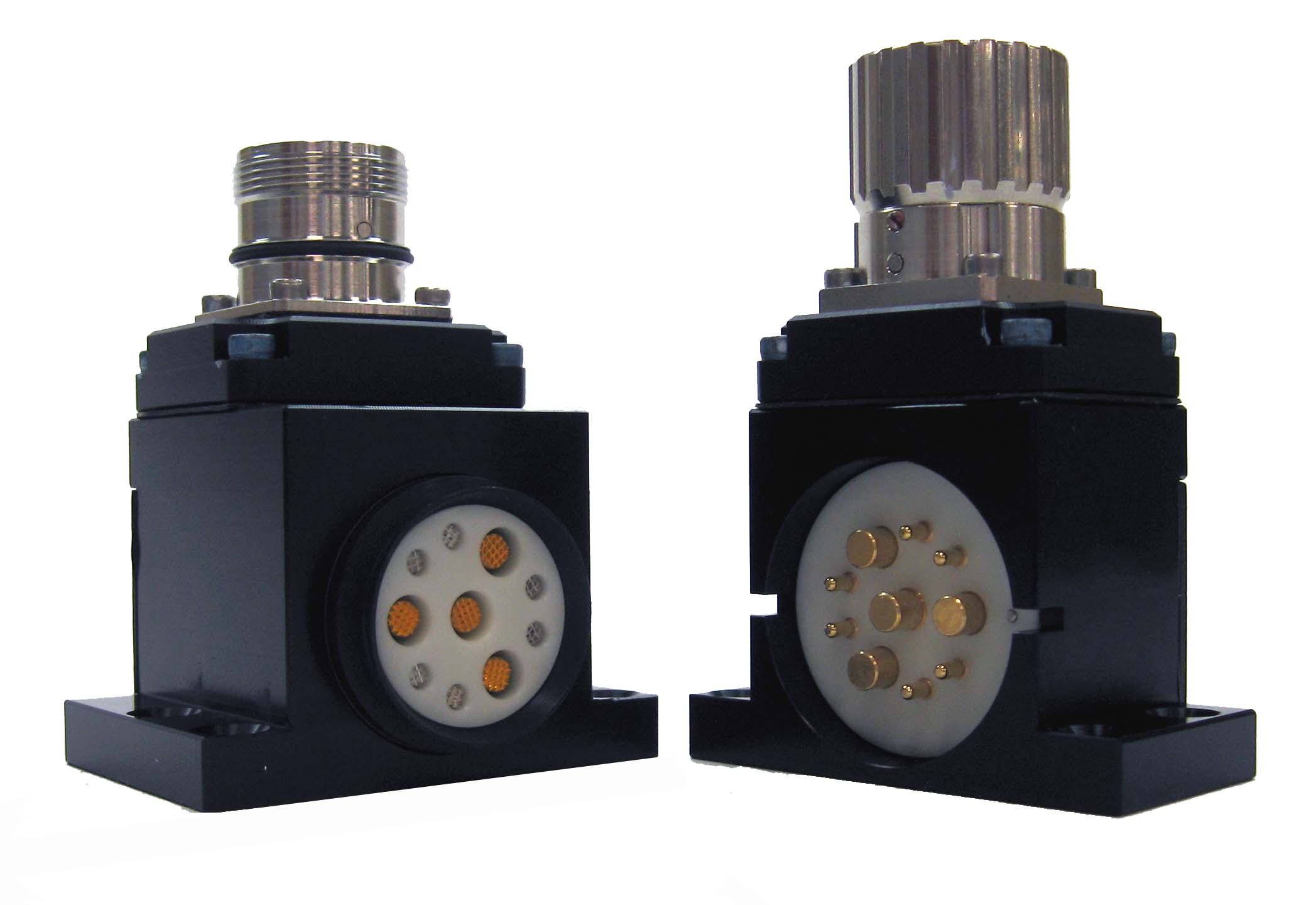

REP10 Modules (Master and Tool)
REP10 Modules (Master and Tool)

Part NumberSideNotes
9120-REP10-MMServo Power Module with 9-pin M23 connector; 15 Amp max 500VAC/700VDC max on Pins 1,4,7,10; 5 Amp max/250VAC max on Pins 2,3,5,6,8,9 - Master Side
9120-REP10-TTServo Power Module with 9-pin M23 connector; 15 Amp max on Pins 1,4,7,10; 5 Amp max on Pins 2,3,5,6,8,9 - Tool. 150V Max. on all pins. - Tool Side.

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Servo Power Module with 9-pin M23 connector
Weight: Master 0.45 lbs (0.20 kg)
Tool 0.40 lbs (0.18 kg)
Materials:
  • Precious-metal-plated pins
  • Amphenol connectors.
# Pins: Power - 9 and 9
Elec. Rating: 15 Amp/150V max. (Pins 1, 4, 7, 10)
5 Amp/150V max. (Pins 2, 3, 5, 6, 8, and 9)
Operational Temperature Range: -20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC)
