Description: |

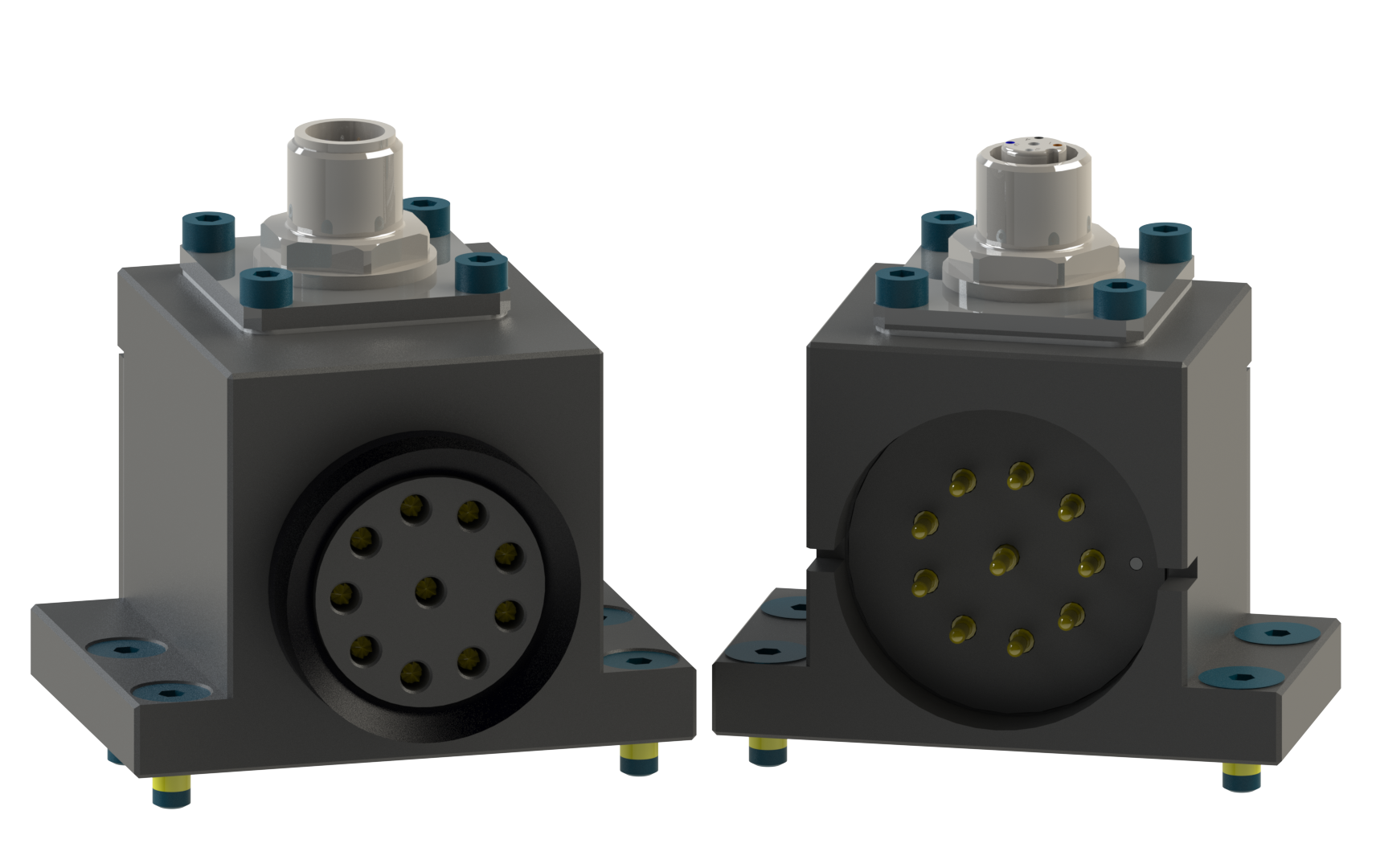

4 Amp/250VAC electrical module with 5-pin M12 connector |
|
Weight: |
Master 0.42 lbs (0.19 kg)
Tool 0.31 lbs (0.14 kg) |
|
Materials: |
- Aluminum housing
- Rhodium-plated heads on spring pins
- Rhodium-plated contact pins
- Nitrile seal.
|
|
Elec. Rating: |
4 Amp/250VDC max |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-RD5.pdf |
RD5 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-RD5-M |
4A/250VDC electrical module with 5-pin M12 connector - Master side
|
| 9120-RD5-T |
4A/250VDC electrical module with 5-pin M12 connector - Tool side
|
|
