ATI Tool Changer Products: PG3

Provides a ground connection for customer tooling. Not to be used for power.
A single (1) plated copper contact, capable of carrying 200 Amps.
Volts must not exceed 600 Volts. Current must not exceed 200 Amps.
Uses advanced, patented, cone-mating technology to transfer current from Master to Tool.
Mating conical surfaces provide a large contact area, excellent misalignment capability, and allow efficient coupling/uncoupling without high spring forces or excessive wear.
Power to be disconnected and discharged prior to tool changes. Module is not a switch.
Contact tip easily replaced, if required.
Recessed and shrouded Master-side contacts prevent accidental human contact.
Uses crimp-type ring terminals to attach customer cables. (2 AWG/35mm^2 standard, other sizes available or customer-supplied.)
Use of high-flex, fine-stranded wire required.
Maximum cable size 1/0 AWG.
Must have 6mm of free space below Tool module to allow for cable flex.

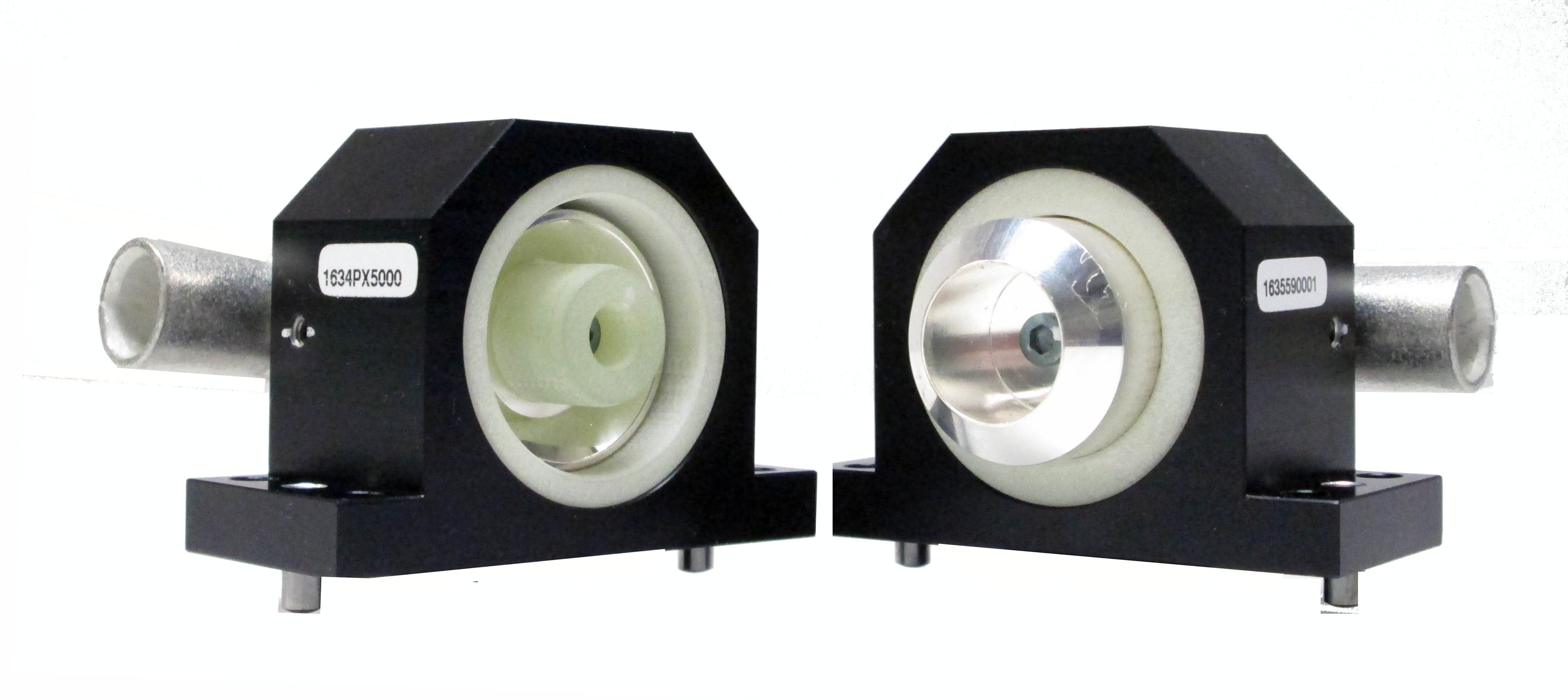

PG3 Modules (Master and Tool)

Part Number	Side	Notes
9120-PG3-M	M	High Current Module with Ring Terminal Bases, Single Contact, 200 Amp - Master side
9120-PG3-T	T	High Current Module with Ring Terminal Bases, Single Contact, 200 Amp - Tool side
