| 9121-PC2-M | M | (5) Contacts, #2 wire, 200 Amp, 600V Rating Primary Current Module - Master side |
| 9121-PAD-T | T | Protective Cover Module - Tool side |
| 9121-PC2-T | T | (5) Contacts, #2 wire, 200 Amp, 600V Rating Primary Current Module - Tool side |
|
|
Description: |

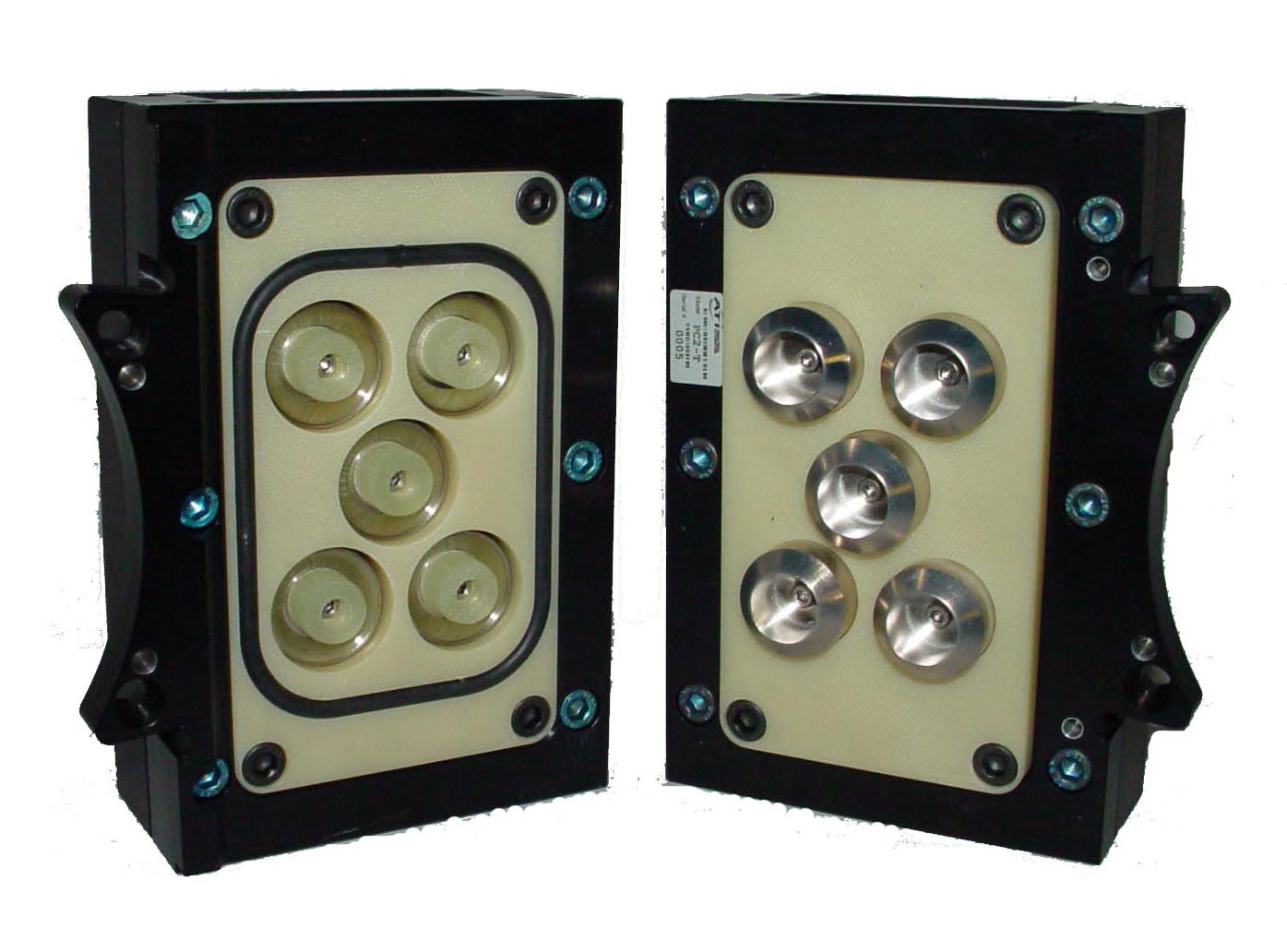

(5) Contacts, #2 wire, 200 Amp, 600V Rating Primary Current Module |
|
Weight: |
Master 3.6 lbs (1.63 kg)
Tool 3.5 lbs (1.59 kg) |
|
Materials: |
- Precious metal-plated contacts.
|
|
Elec. Rating: |
200 Amp/600V max. @ 100% Duty Cycle |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9121-PAD-T.pdf |
PAD Tool Protective Cover Module Drawing
|
| 9630-20-PC2.pdf |
PC2 Module Drawing
|
|
| 9620-20-F-PC2.pdf |
PC2 High Current Module Manual
|
|
No 3D models for this product are currently available. See your Account Representative for more information.
|
| 9005-20-1277 | 1-1/2 NPT Fitting Plate Kit |
|
|
