ATI Tool Changer Products: MTS9

简体中文 | English | Español | 日本語 | Português

Electrical Modules: MTS9

Product Description

9-pins.
28 Amp, 500VAC/700VDC.
Safety ground contact provided to pass ground through Master to Tool.
Amphenol MS-style connectors for interfacing on the Master and Tool modules.
Fluid-resistant seal on contacts.
Module should be mounted to a Tool Changer, QC-100 or larger, to handle maximum rated current and 100% duty cycle without overheating.
Allowable maximum ambient temperature under these conditions is 100°F.
Master module may extend high above Master plate. Adjust robot interface plate as needed to compensate.
Tool module may extend below Tool plate.

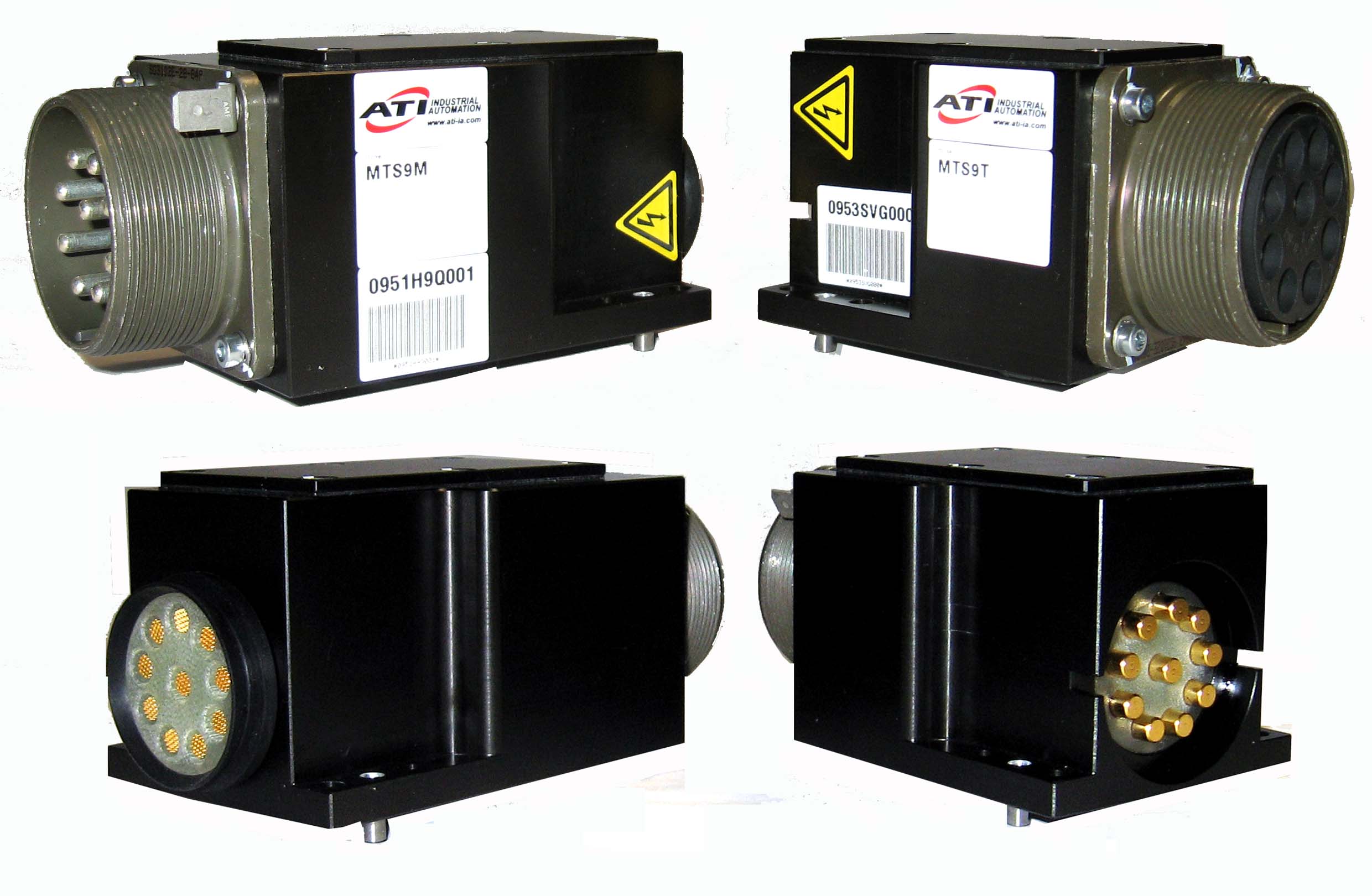

MTS9 Tool Module

Part Number	Side	Notes
9120-MTS9-M	M	9-pin, 28 Amps/500VAC/700VDC Electrical Module, Straight Version - Master side
9120-MTS9-T	T	9-pin, 28 Amps/500VAC/700VDC Electrical Module, Straight Version - Tool side

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Description:

9-pin, 28 Amps/500VAC/700VDC Electrical Module, Straight Version

Weight:

Master x.x lbs (x.x kg)
Tool x.x lbs (x.x kg)

Materials:

# Pins:

Elec. Rating:

28 Amps/500VAC/700VDC

Operational Temperature Range:

-20 ｰF - 100 ｰF (-28.9 ｰC - 37.8 ｰC)
