Electrical Modules: MTA6

Product Description

7-pins.
45 Amp, 500VAC/700VDC.
Safety ground contact provided to pass ground through Master to Tool. Module housings are grounded.
Amphenol MS-style connectors for interfacing on the Master and Tool modules.
Fluid-resistant seal on contacts.
Module should be mounted to a Tool Changer, QC-100 or larger, to handle maximum rated current and 100% duty cycle without overheating.
Allowable maximum ambient temperature under conditions of maximum current is 100 degrees F.
Master module may extend high above Master plate. Adjust robot interface plate as needed to compensate.
Tool module may extend below Tool plate.
Available with Viton seals

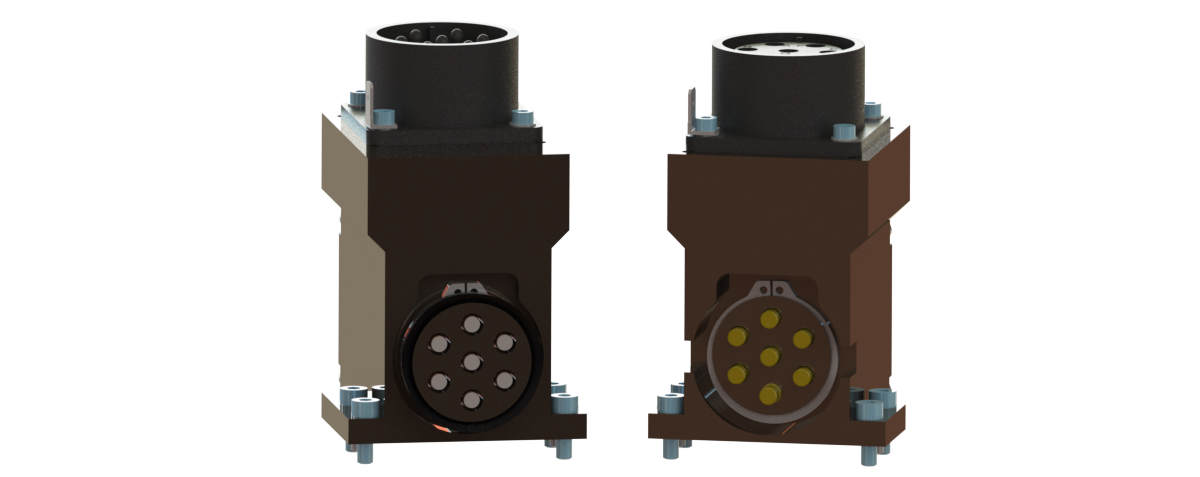

MTA6 Modules (Master and Tool)

Part Number	Side	Notes
9120-MTA6-M	M	MT style power module with Amphenol connector maximum rating 45A - Master side
9120-MTA6-T	T	MT style power module with Amphenol connector maximum rating 45A - Tool

Specifications

Compatible QCs

Connectors and Cables

Drawings

Manuals

3D CAD Models

Description:

MT-style Power Module with Amphenol connector Max. rating 45 Amp

Weight:

Master 1.01 lbs (0.46 kg)
Tool 1.27 lbs (0.58 kg)

Materials:

# Pins:

Elec. Rating:

45 Amp/500VAC/700VDC

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
