ATI Tool Changer Products: GD4

简体中文 | English | Español | 日本語 | Português

Electrical Modules: GD4

Product Advantages

4-Pin, M12 male and female connectors.
4 Amp/250V.
5-position, adjustable electrical module - Master and Tool side.
Provides 5 unique positions across 180 degrees to increase flexibility in robot dress packages.
Warning: The modules must be adjusted and secured into position prior to operation, otherwise internal damage to conductors may occur.
Pin block sealed from moisture when coupled.
No-Touch contacts on Master module.
Patented design.

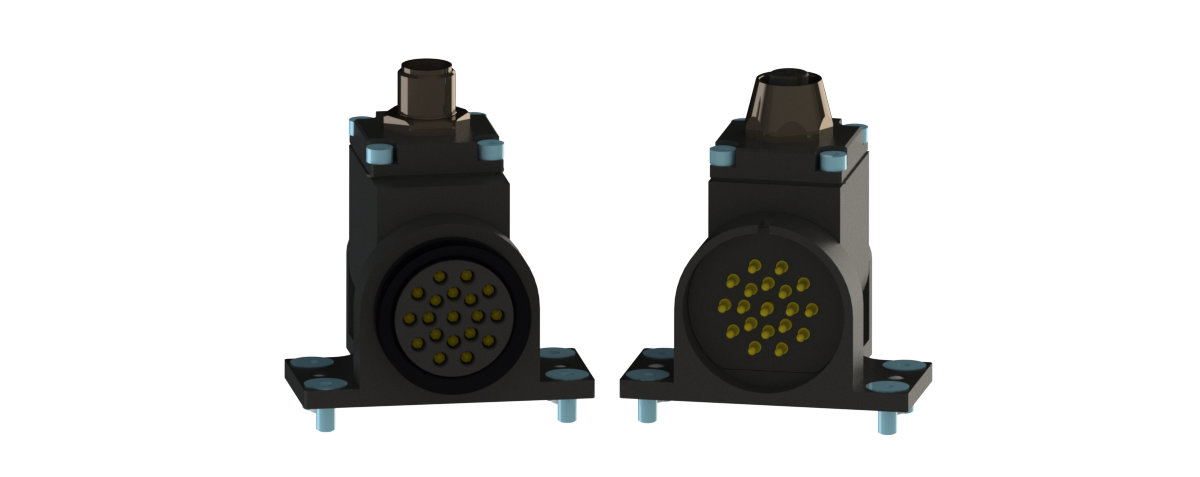

GD4 Modules (Master and Tool)

Part Number	Side	Notes
9120-GD4-M	M	Electrical Module with and with 5-position adjustable M12 4-Pin Connector - Master side
9120-GD4-T	T	Electrical Module with and with 5-position adjustable M12 4-Pin Connector - Tool side

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Description:

Electrical Module with and with 5-position adjustable M12 4-Pin Connector

Weight:

Master 0.32 lbs (0.15 kg)
Tool 0.27 lbs (0.12 kg)

Materials:

# Pins:

Elec. Rating:

4 Amp/250V

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
