Description: |

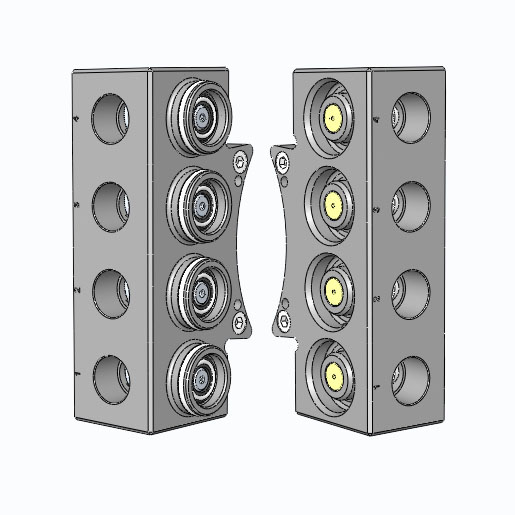

Stainless Steel Fluid/Air Module with (4) 1/2 Rc self-sealing ports, 3/8 Valve components, Nipple port with radial seal on Master, C'bore for Nipple port on Tool |
|
Weight: |
Master 6.4 lbs (2.90 kg)
Tool 5.0 lbs (2.27 kg) |
|
Materials: |
- Stainless steel housings and Valve Components
- Buna-N seals.
|
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-FH14.pdf |
FH14 Module Drawing
|
|
| 9620-20-D-FH14.pdf |
FH14 Fluid/Air Module Manual
|
|
| 9121-FH14-M |
Fluid/Air Module with (4) 1/2 Rc Self-Sealing Ports, 3/8 Valve Components, Nipple Port with Radial Seal, Master Side.
|
| 9121-FH14-T |
Fluid/Air Module with (4) 1/2 Rc Self-Sealing Ports, 3/8 Valve Components, C-Bore for Nipple Port, Tool Side
|
|
