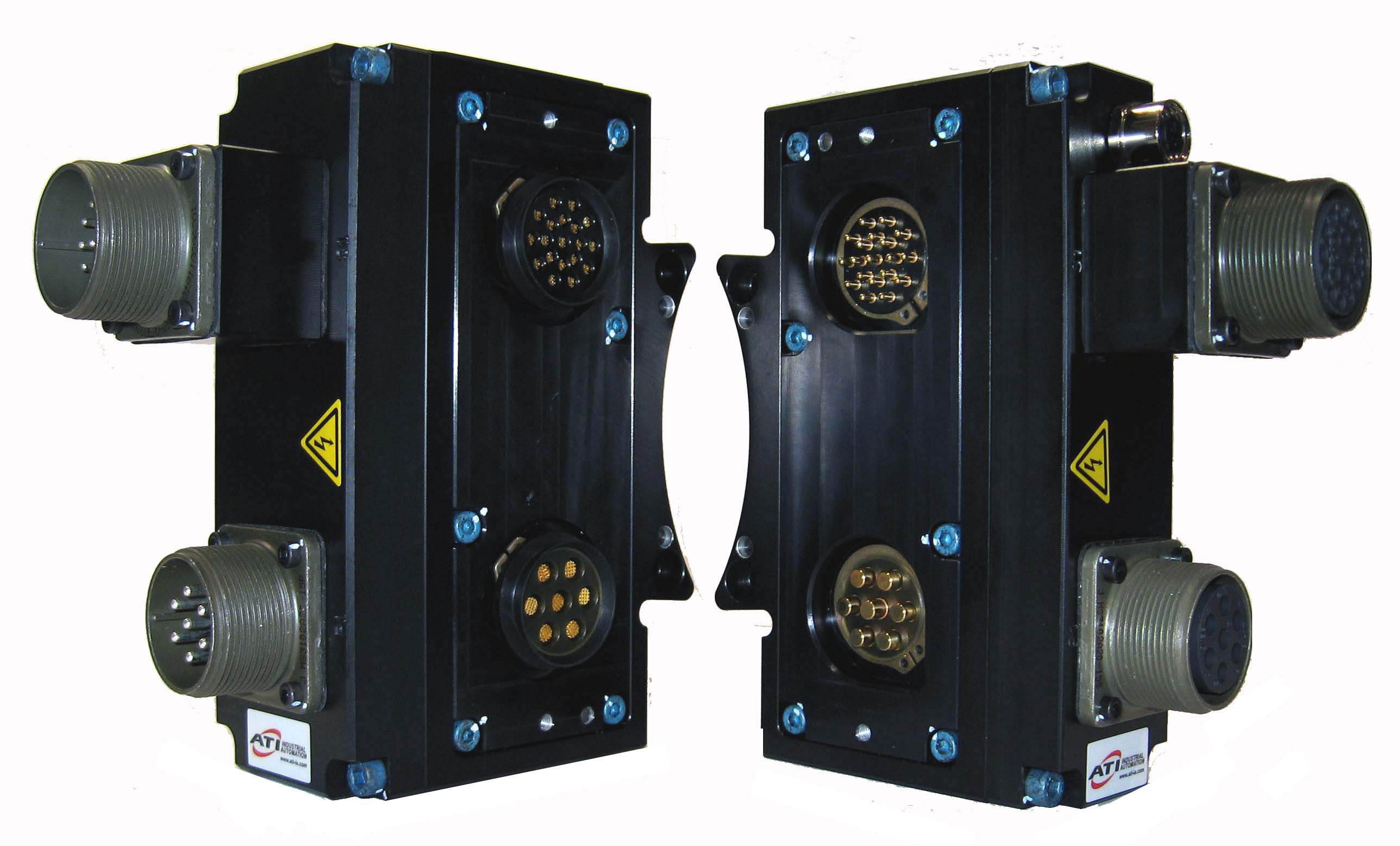

9121-EF17-M | M | Fanuc Servo Module with 7-pin Motor Power/Brk Connector and Battery Backup - Master side |
9121-EF17-T | T | Fanuc Servo Module with 7-pin Motor Power/Brk Connector and Battery Backup - Tool side |
Description: |
Fanuc Servo Module with 7-pin Motor Power/Brk Connector and Battery Backup |
Weight: |
Master 2.65 lbs (1.20 kg) Tool 2.55 lbs (1.16 kg) |
Materials: |
- Aluminum housings
- Delrin® fitting plates
- Nitrile seals
- Precious-metal-plated contacts
- Ultem® and Delrin® blocks.
|
# Pins: |
Power - 7 Signal - 19 |
Elec. Rating: |
Motor Current - 13 Amp, 500VAC/700VDC max. Encoder Current - 3 Amp, 250VAC/30VDC max. |
Operational Temperature Range: |
-20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC) |
|
QC-113
| |
|
Flat C Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
QC-210
| |
| No |
QC-213
| |
| No |
QC-310
| |
| No |
QC-313
| |
| No |
QC-510
| |
| No |
QC-1210
| |
| No |
QC-1310
| |
| No |
QC-1510
| |
| No |
Custom Application QC Models |
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
Cables
There are no Cables associated with this module.
|
|
9230-20-2171.pdf |
Remote Battery Backup Module with MicroFast Cable
|
9630-20-BATTERY BACKUP-3-PIN.pdf |
Servo module 3-pin battery backup drawing
|
9630-20-EF17.pdf |
EF17 Module Assembly and Wiring Drawing
|
|
None currently available. See your Account Representative for more information.
|
9121-EF17-M |
Fanuc Servo master module with 7-pin Motor Power/Brk Connector and battery backup
|
9121-EF17-T |
Fanuc Servo tool module with 7-pin Motor Power/Brk Connector and battery backup 3
|
|
|
