9121-EC6-M | M | Servo Module with (1) M23 8-pin Servo Power Connector, (1) M23 12-Pin Servo Signal Connector, (1) Turck Mini 5-Pin DeviceNet Signal Connector, and (1) Turck Mini 4-Pin DeviceNet Power Connector - Master side |
9121-EC6-T | T | Servo Module with (1) M23 8-pin Servo Power Connector, (1) M23 12-Pin Servo Signal Connector, (1) Turck Mini 5-Pin DeviceNet Signal Connector, and (1) Turck Mini 4-Pin DeviceNet Power Connector - Tool side |
Description: |

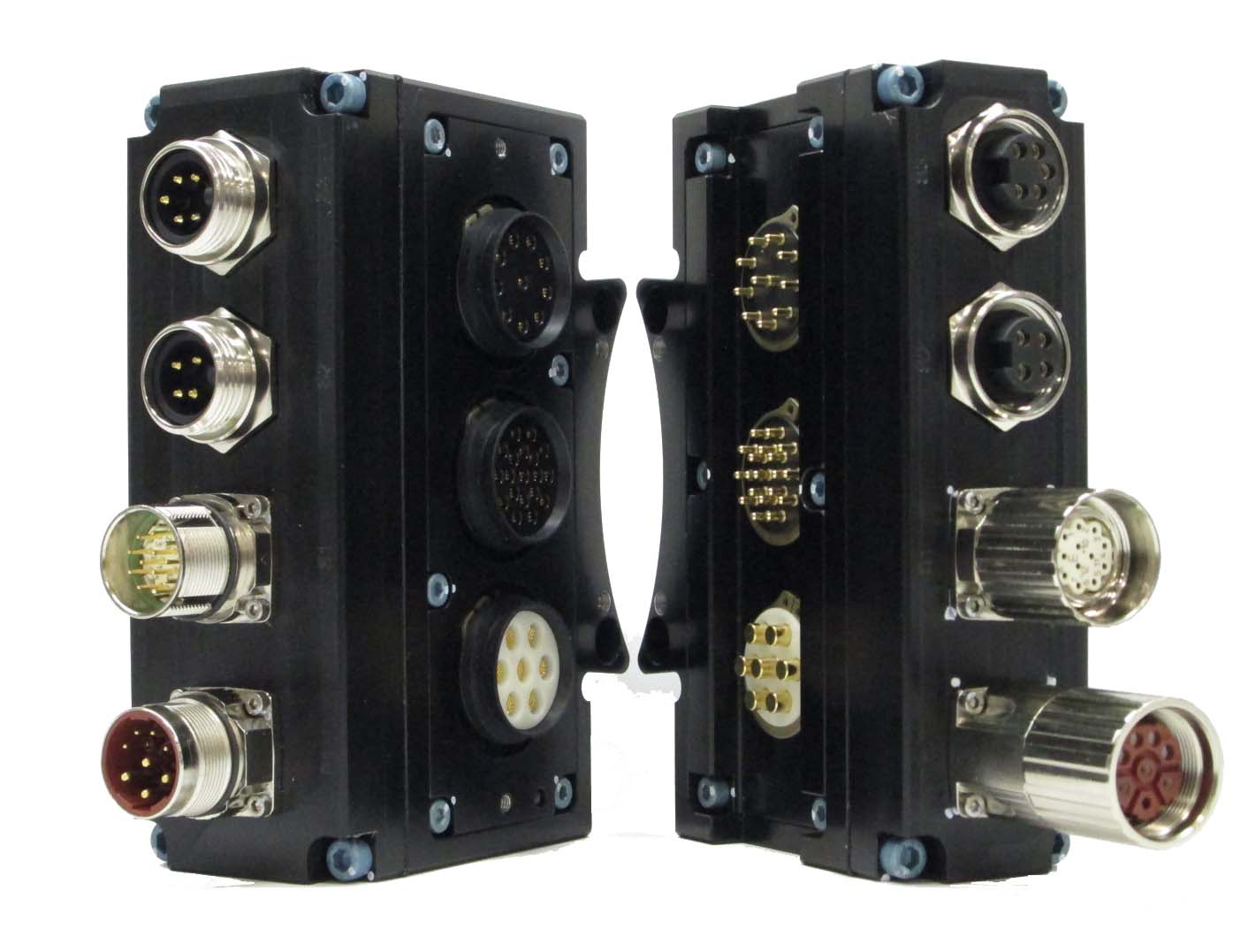

Servo Module with (1) M23 8-pin Servo Power Connector, (1) M23 12-Pin Servo Signal Connector, (1) Turck Mini 5-Pin DeviceNet Signal Connector, and (1) Turck Mini 4-Pin DeviceNet Power Connector |
Weight: |
Master 2.91 lbs (1.32 kg) Tool 2.52 lbs (1.14 kg) |
Materials: |
- Aluminum housings
- Delrin® fitting plates
- Nitrile seals
- Precious-metal-plated contacts
- Ultem® and Delrin® blocks.
|
# Pins: |
Power - 8 and 4 Signal - 12 and 5 |
Elec. Rating: |
Motor Current - 13 Amp, 500VAC/700VDC max. Encoder Current - 3 Amp, 250VAC/30VDC max. Aux and DeviceNet Current - 5 Amp, 24VAC max.Aux and DeviceNet Current: 5 Amp, 24VAC max. |
Operational Temperature Range: |
-20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC) |
|
QC-113
| |
|
Flat C Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
QC-210
| |
| No |
QC-213
| |
| No |
QC-310
| |
| No |
QC-313
| |
| No |
QC-510
| |
| No |
QC-1210
| |
| No |
QC-1310
| |
| No |
QC-1510
| |
| No |
Custom Application QC Models |
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
Master
Side Cable Mount Connector Mates |
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
There are no connector mates associated with this panel mount connector.
|
|
|
Cables
There are no Cables associated with this module.
|
|
9630-20-EC6.pdf |
EC6 Module Drawing
|
|
9620-20-E-A Servo.pdf |
General Servo Module Manual
|
|
9121-EC6-T |
Servo module with (1) M23 8-pin Servo Power, (1) M23 12-Pin Servo Signal, (1) Turck Mini 5-Pin DeviceNet Signal, and (1) Turck Mini 4-Pin DeviceNet Power connectors
|
9121-EC6-M |
Servo module with (1) M23 8-pin Servo Power, (1) M23 12-Pin Servo Signal, (1) Turck Mini 5-Pin DeviceNet Signal, and (1) Turck Mini 4-Pin DeviceNet Power connectors
|
|
|
