| 9120-E04-M | M | 4-Pin, 3 Amp/50VAC Electrical Module with solder connections, for QC-001 - Master side |
| 9120-E04-T | T | 4-Pin, 3 Amp/50VAC Electrical Module with solder connections, for QC-001 - Tool side |
|
|
Description: |

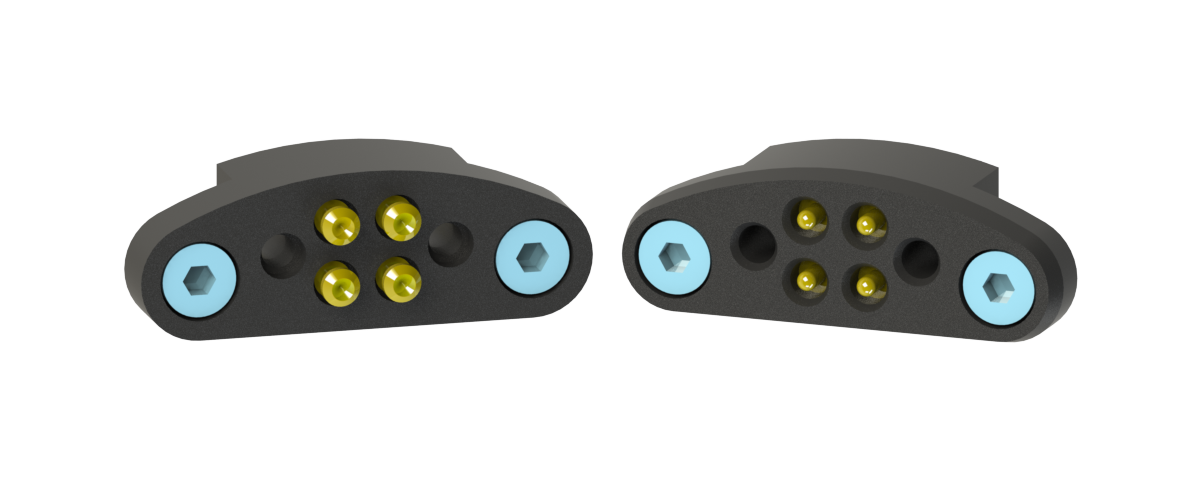

4-Pin, 3 Amp/50VAC Electrical Module with solder connections, for QC-001 |
|
Weight: |
Master 0.01 lbs (0.005 kg)
Tool 0.01 lbs (0.005 kg) |
|
Materials: |
- Precious-metal-plated contact pins
- Delrin®.
|
|
Elec. Rating: |
3 Amp/50VAC |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
QC-1
| |
|
|
Electrical modules must be utilized in matching pairs: one each on Flat A and Flat B. Suggested QC operating air pressure should be at least 80 psi. |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-E04.pdf |
E04 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-E04-T |
Electrical Module, 4 Pin, 3 Amp/50 VAC with solder connections, QC-001 Tool
|
| 9120-E04-M |
Electrical Module, 4 Pin, 3 Amp/50 VAC with solder connections, QC-001 Master
|
|
|
