Description: |

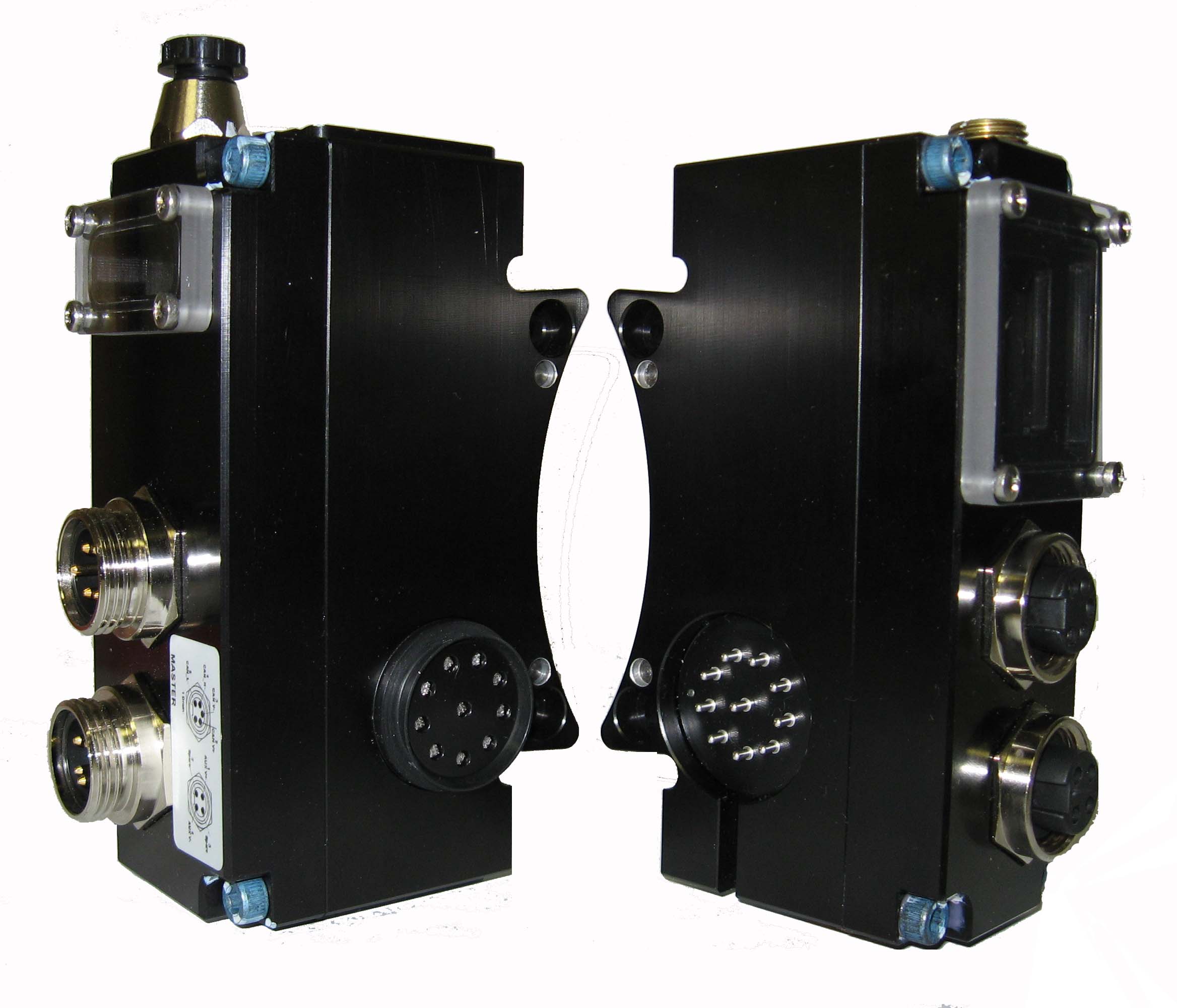

DeviceNet and Auxiliary Power Pass-through Module |
|
Weight: |
Master 1.54 lbs (0.70 kg)
Tool 1.17 (0.53 kg) |
|
Materials: |
- Anodized aluminum housing
- Precious-metal-plated spring and contact pins
- Nitrile seals.
|
|
# Pins: |
5-pin Mini on DeviceNet
4-pin Mini on Auxiliary Power |
|
Elec. Rating: |
DeviceNet - 3 Amp max.
Auxiliary Power - 9 Amp max. |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-DR2.pdf |
DR2 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9121-DR2-T |
DeviceNet Pass-thru Tool Module
|
| 9121-DR2-M |
DeviceNet Pass-thru Master Module
|
|
