DeviceNet Quick-Connect Modules: DB12-M,DB10-T


Skip Navigation Linksホーム > 製品 > ロボット式ツールチェンジャ > モジュールとアクセサリ > モジュール > 制御と信号のモジュール > DB12-M,DB10-T





Product Advantages
  • The DeviceNet Module allows for communication and control of the Tool Changer with Master- and Tool-side DeviceNet nodes. (ODVA compliance certified. Quick-Connect compatible.)
  • An integrated double-solenoid valve (available on the Jxx valve adapter module) controls the Tool Changer locking mechanism.
  • A flexible boot surrounds the pin block and seals the connection from moisture while coupled.
  • Patented Tool Stand Interlock (TSI) technology is provided through a connector on the Tool module. Integration of a mechanical limit switch will allow the integrated solenoid valve to uncouple the Tool Changer ONLY when the Tool is in the Stand.
  • Five (5) independent Tool-ID (0-9) switches provided.
  • Ready-to-Lock (R1 and R2), Lock, and Unlock sensor inputs provided.
  • Compact design package.
  • ATI's Arc Prevention Circuit (patent pending) protects all electrical power contacts against reduced life that can be caused by loads with high inrush current during coupling/uncoupling.

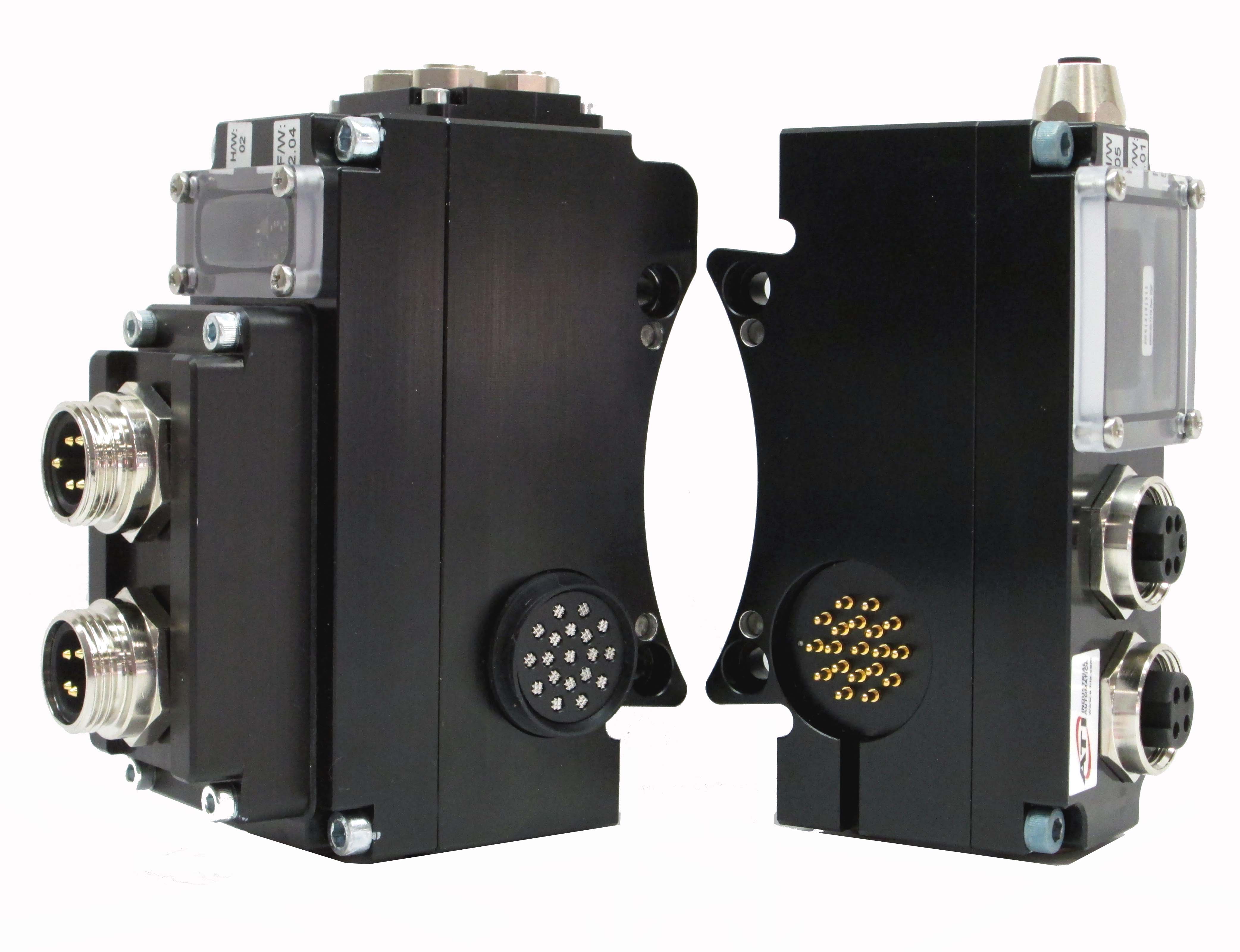

DB12 Master and DB10 Tool Modules
DB12 Master and DB10 Tool Modules

Part NumberSideNotesEDS File
9121-DB12-MMQuick Connect Capable DeviceNet Module with Arc Prevention, no TSI Bypass, Block Latch without Tool9031-20-1040.eds
9121-DB10-TTQuick Connect Capable DeviceNet Module with 5 independent switch Tool-ID and mechanical switch TSI, Supports Arc Switch on the Master - Tool side

SpecificationsCompatible QCsConnectors and CablesDrawingsManuals3D CAD Models

Description: Quick Connect Capable DeviceNet Module with Arc Prevention, no TSI Bypass, Block Latch without Tool
Weight: Master 2.25 lbs (1.02 kg)
Tool 1.35 lbs (0.61 kg)
Materials:
  • Aluminum housings/covers
  • Clear polycarbonate window
  • Precious-metal-plated contacts
  • Delrin seals
  • Nylon pin block.
Elec. Rating: Control modules - 24VDC
Pass-through signals - 3 Amp/30VDC
Operational Temperature Range: -20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC)
