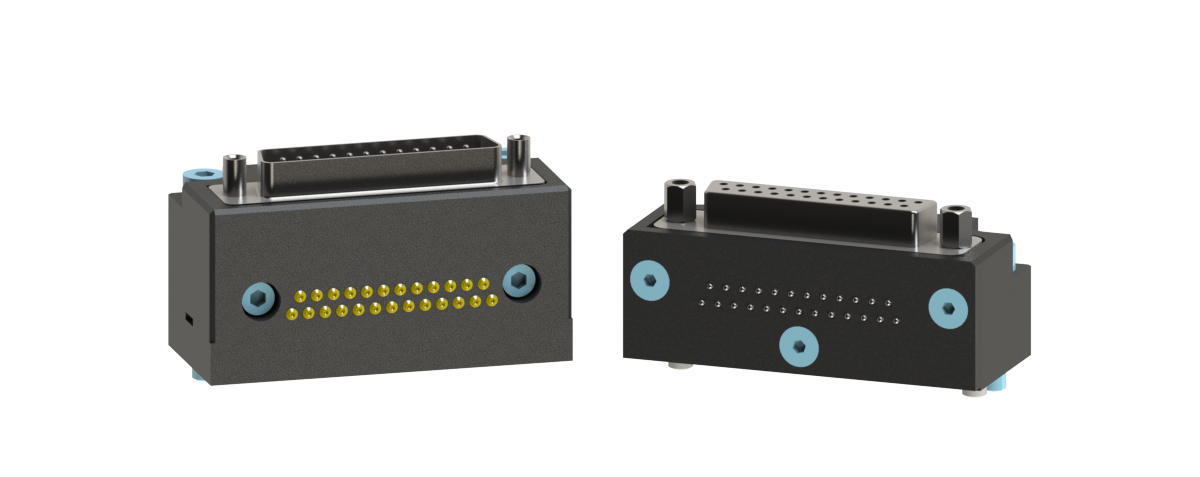

| 9120-D25-M | M | 25-pin, 3 Amp/50VAC electrical module with low-power D-sub connector - Master side |
| 9120-D25-T | T | 25-pin, 3 Amp/50VAC electrical module with low-power D-sub connector - Tool side |
|
|
Description: |
25-pin, 3 Amp/50VAC electrical module with low-power D-sub connector |
|
Weight: |
Master 0.20 lbs (0.09 kg)
Tool 0.20 lbs (0.09 kg) |
|
Materials: |
- Precious-metal-plated contact pins
- Anodized aluminum and Delrin®.
|
|
Elec. Rating: |
3 Amp/50VAC |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-D25.pdf |
D25 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-D25-M |
Master Signal Module with 25-Pin D-Sub Connector and #4-40 Screw Locks
|
| 9120-D25-T |
Tool Signal Module with 25-Pin D-Sub Connector and #4-40 Screw Locks
|
|
|
