| 9128-CYE1-M | M | Series 8 Ethernet/IP Control Module, 4-Pin M12 D-Code Connector for Ethernet, 4-Pin Male Minifast Connector for Power, 3X 0-9 Rotary Switches for setting the IP Address - Master Side | 9031-20-1101.eds |
| 9128-CYE1-T | T | 4-Pin M12 D-Code Connector for Ethernet, 4-Pin Female Minifast Connector for Power, 0-F Rotary Switch Tool ID - Tool Side | |
|
|
Description: |

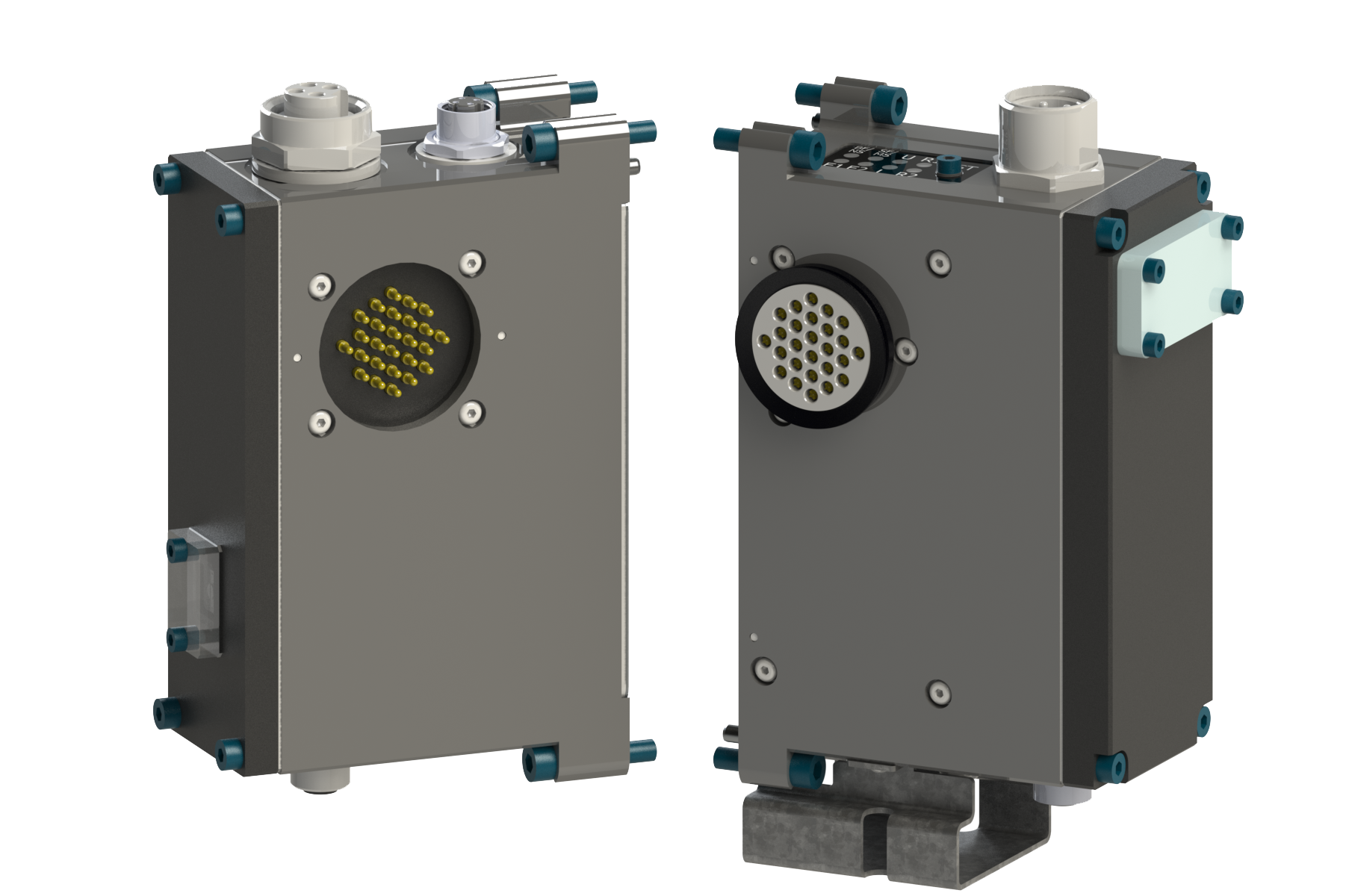

Ethernet IP Module with intergrated 4-Pin D-Coded M12 connector for Ethernet communication, 4-Pin Minfast Connector for US1 and US2 power, TSI on the Tool, Arc Prevention applied to US1 and US2, and integrated web server for tool changer communication configuration and Ethernet switch management. Lock, Unlock, RTL sensing and IP address setting option on the Master. Tool-ID from the Tool module also supported. |
|
Weight: |
Master - 1.6 lbs (0.73 kg)
Tool - 1.45 lbs (0.66 kg) |
|
Materials: |
- Anodized aluminum housing
- Precious-metal-plated spring and contact pin
- Nitrile seals
|
|
Elec. Rating: |
Input Power: 4A, 21.6-30V
Output Power 7A, 20-30V |
|
Operational Temperature Range: |
32 ｰF - 122 ｰF (0 ｰC - 50 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-CYEX.pdf |
CYEx Module Customer Drawing
|
|
| 9620-20-C-CYE1.pdf |
CYE1 Control & Signal Module Manual
|
|
| 9128-CYE1-T |
4-Pin M12 D-Code Connector for Ethernet, 4-Pin Female Minifast Connector for Power, 0-F Rotary Switch Tool ID
|
| 9128-CYE1-M |
Series 8 Ethernet/IP Control Module, Master - 4-Pin M12 D-Code Connector for Ethernet, 4-Pin Male Minifast Connector for Power, 3X 0-9 Rotary Switches for setting the IP Address
|
|
|
