| 9121-AC2-M | M | (4) 3/8 NPT self-sealing ports and (2) 3/4 NPT vacuum ports - Master side |
| 9121-AC2-T | T | (4) 3/8 NPT pass-through ports and (2) 3/4 NPT vacuum ports - Tool side |
|
|
Description: |
(4) 3/8 NPT self-sealing ports (Master side) and pass-through (Tool side), and (2) 3/4 NPT vacuum ports (Master and Tool side) |
|
Weight: |
Master 1.85 lbs (0.84 kg)
Tool 2.55 lbs (1.16 kg) |
|
Materials: |
- Anodized aluminum housings
- Stainless steel valve components
- Nitrile seals.
|
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-AC2.pdf |
AC2 Air Module Drawing
|
|
| 9620-20-D-AC2.pdf |
AC2 Air Module Manual
|
|
| 9121-AC2-T |

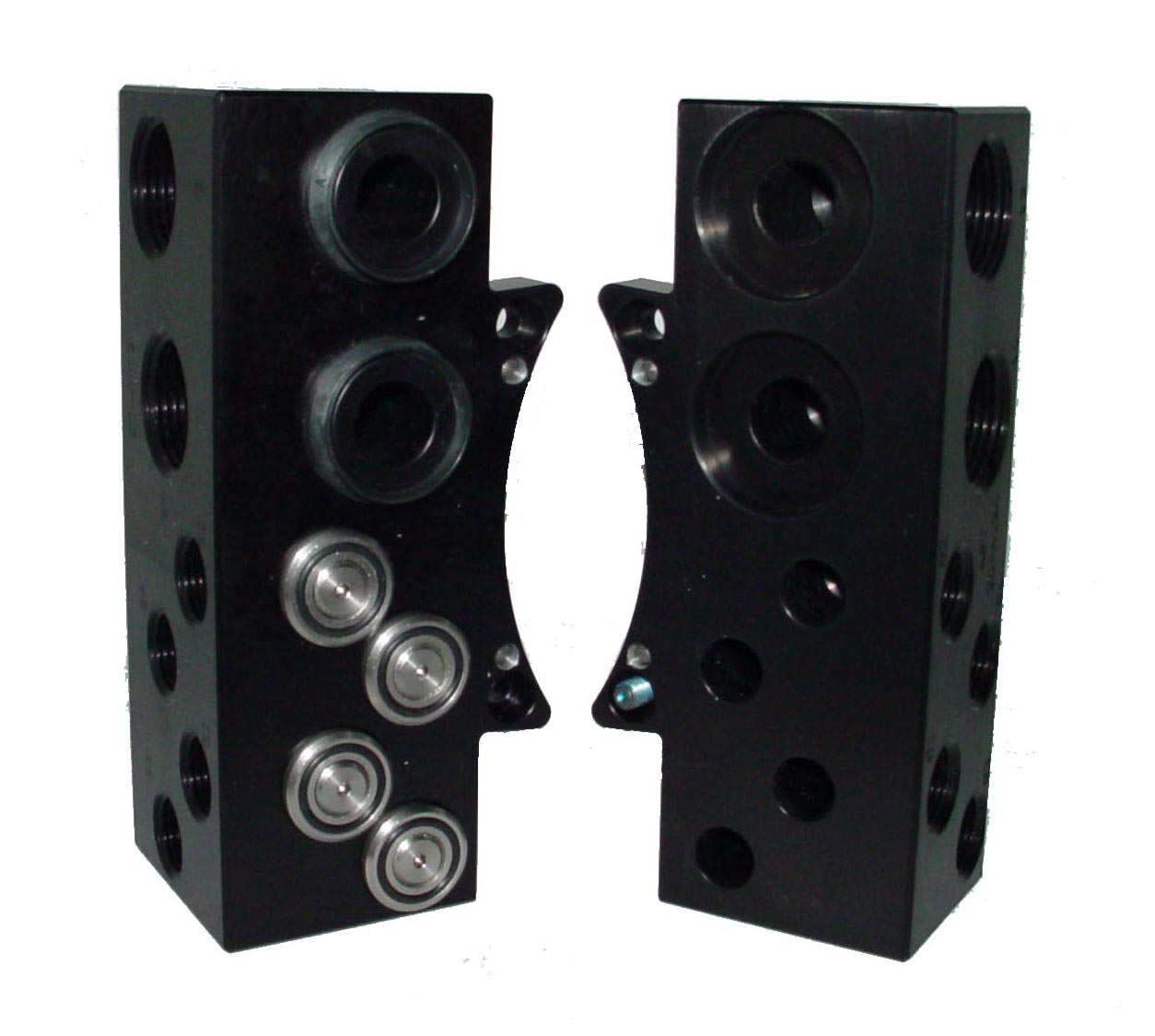

Pneumatic tool module with (4) 3/8” NPT self-sealing ports and (2) ¾” NPT vacuum ports
|
| 9121-AC2-M |
Pneumatic master module with (4) 3/8” NPT self-sealing ports and (2) ¾” NPT vacuum ports
|
|
|
