Description: |

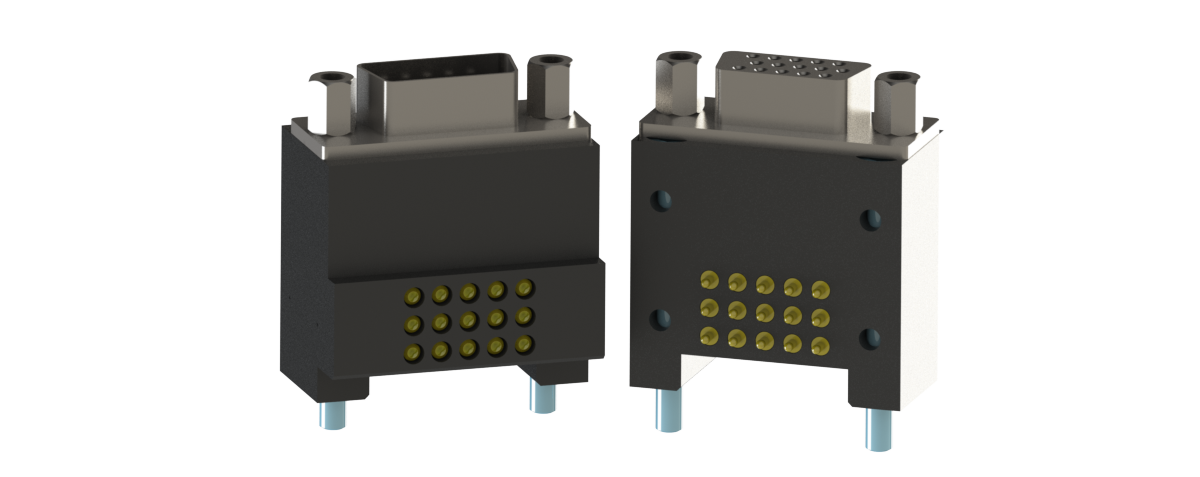

15-pin, 2.5 Amp/50VAC electrical module with high-density D-sub connector |
|
Weight: |
Master 0.05 lbs 0.02( kg)
Tool 0.05 lbs (0.02 kg) |
|
Materials: |
- Precious-metal-plated contact pins
- Anodized aluminum
- Delrin®.
|
|
Elec. Rating: |
2.5 Amp/50VAC |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-A15.pdf |
A15 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
No 3D models for this product are currently available. See your Account Representative for more information.
|
