Lateral Compensator
L1X-125-H
ホーム
>
製品
>
コンプライアンスデバイス
>
コンプライアンスデバイスの各モデル
>
L1X-125-H
Product Advantages
Unique Compliance: Patent pending mechanism allows for X-Y lateral compliance and Z rotational compliance.
Direct Mounting: ISO robot flange pattern allows for direct mounting to many standard robot wrists in a compact body.
Flexible Configurations: Many options available, such as PNP or NPN sensing for locked (centered) and unlocked (floating) conditions, different boss sizes, and custom tool plate patterns.
Position Hold Option: Apply air pressure to a supplemental set of pistons to allow the unit to be held in the offset state.

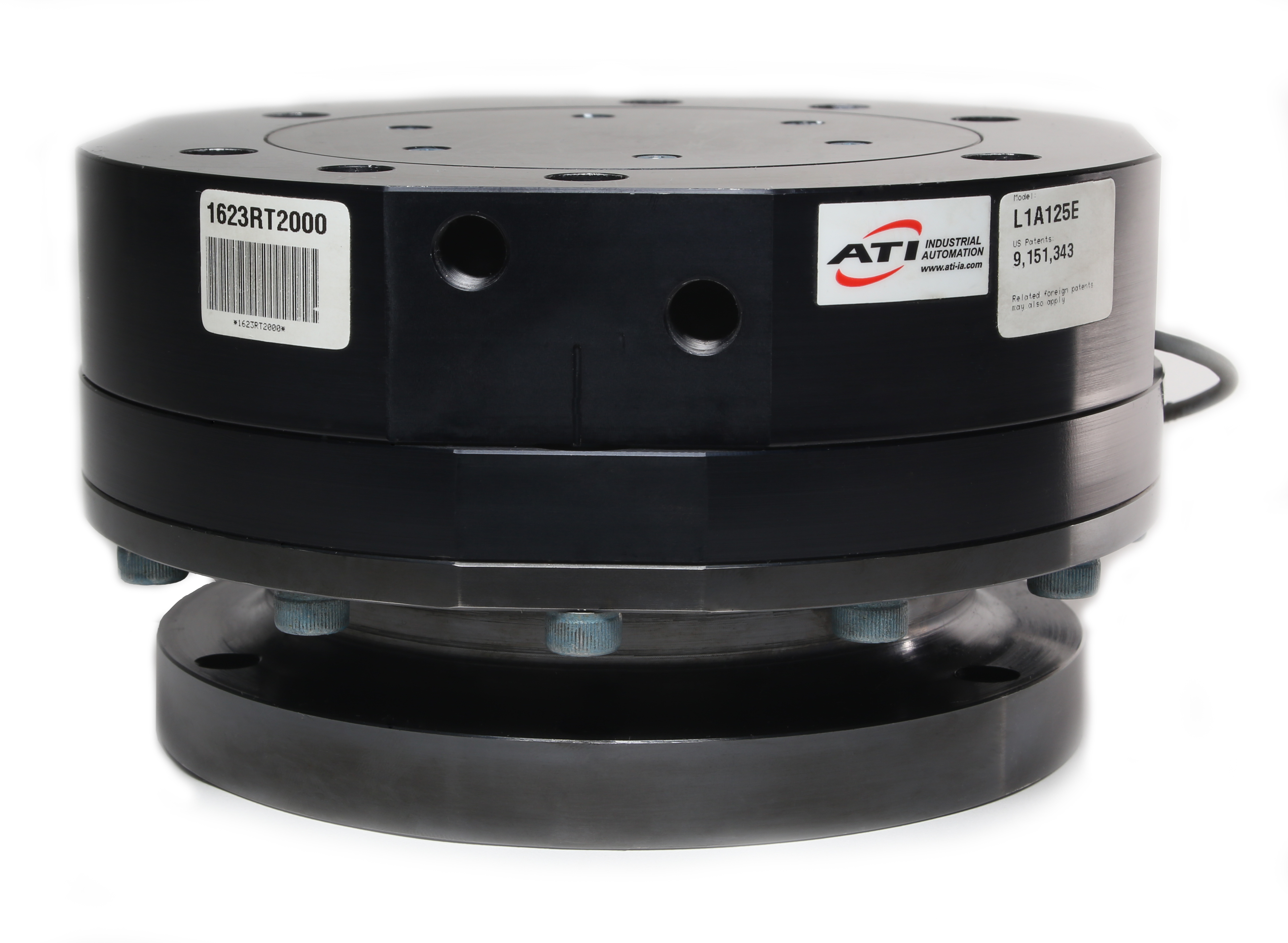

L1A-125-SG-E-2100-H Lateral Compensator
Specifications
Drawings
Manuals
3D CAD Models
US (Standard)
SI (Metric)
Lateral Compliance
ア0.175 in
Rotational Compliance
ア18ー
Re-Center, Max Vertical Payload
220 lb
Re-Center, Max Horizontal Payload
100 lb Offset 6 in
Re-Center, Max Moment (X-Y)
480 lbf-in
Re-Center, Max Moment (Z)
80 lbf-in
Locked Stiffness at Max Static Moment (X-Y)
ア0.2ー at ア6900 lbf-in
Locked Stiffness at Max Static Moment (Z)
ア0.4ー at ア540 lbf-in
Position Hold, Max Lateral Force *
80 lbf
Position Hold, Max Moment Z
130 lbf-in
Weight
13 lb
Nominal Operating Pressure
80 psi
Positional Repeatability at Tool Interface
ア0.0015 in
Ambient Temperature Range
-20 ーF - 150 ーF
Rated Life
1 million cycles
Sensing Option
Lock & Unlock
* Forces in the XY plane which meet or exceed this value may overcome the position hold feature and allow unwanted compliance slip.
** Payloads which meet or exceed this value may – under dynamic loads from acceleration - overcome the position hold feature and allow unwanted compliance slip.
