Lateral Compliance |
ｱ0.06 in |
|
Rotational Compliance |
ｱ10ｰ |
|
Re-Center, Max Vertical Payload |
66 lb |
|
Re-Center, Max Horizontal Payload |
20 lb Offset 4 in |
|
Re-Center, Max Moment (X-Y) |
54 lbf-in |
|
Re-Center, Max Moment (Z) |
9 lbf-in |
|
Locked Stiffness at Max Static Moment (X-Y) |
ｱ0.1ｰ at ｱ1000 lbf-in |
|
Locked Stiffness at Max Static Moment (Z) |
ｱ0.1ｰ at ｱ75 lbf-in |
|
Nominal Operating Pressure |
80 psi |
|
Positional Repeatability at Tool Interface |
ｱ0.001 in |
|
Ambient Temperature Range |
-20 ｰF - 150 ｰF |
|
Rated Life |
1 million cycles |
|
Sensing Option |
Lock & Unlock |
|
| 9630-15-L1A-063-2070.pdf |

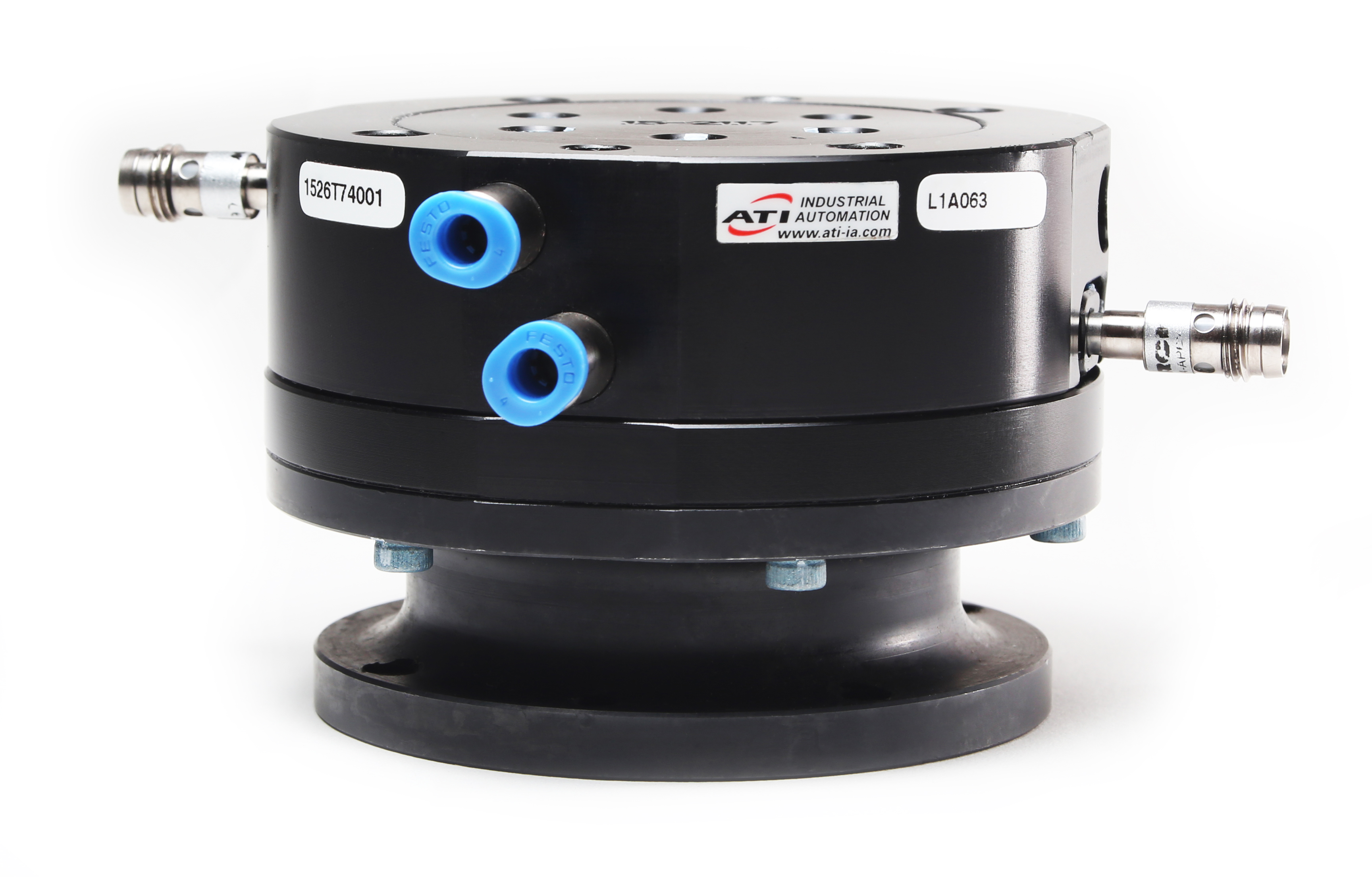

Lateral Compliance Compensator, 63mm BC, No Boss, L, UL Sensor PNP Quick Disconnect, M5 Ports
|
|
| 9610-15-1005.pdf |
LCC 063 Lateral Compliance Compensator Manual
|
|
| LCC 63mm Mounting Pattern |
Lateral Compliance Compensator, 63mm BC
|
|
