Utility Coupler: UC-GH1


Skip Navigation LinksHome > Products > Utility Couplers > Utility Coupler Models > UC-GH1

Product Advantages
  • Manual coupler connects multiple utilities at one time.
  • (3) Mounting flats attach standard ATI utility modules.
  • Compact body size.
  • Sensors available to detect tool side presence and locked state.
  • Hardened stainless steel alignment pins.
  • Patented latch draws in utilities.
  • (4) 3/8" axial checked ports integrated in body.
  • Rated Life: 30,000 cycles.

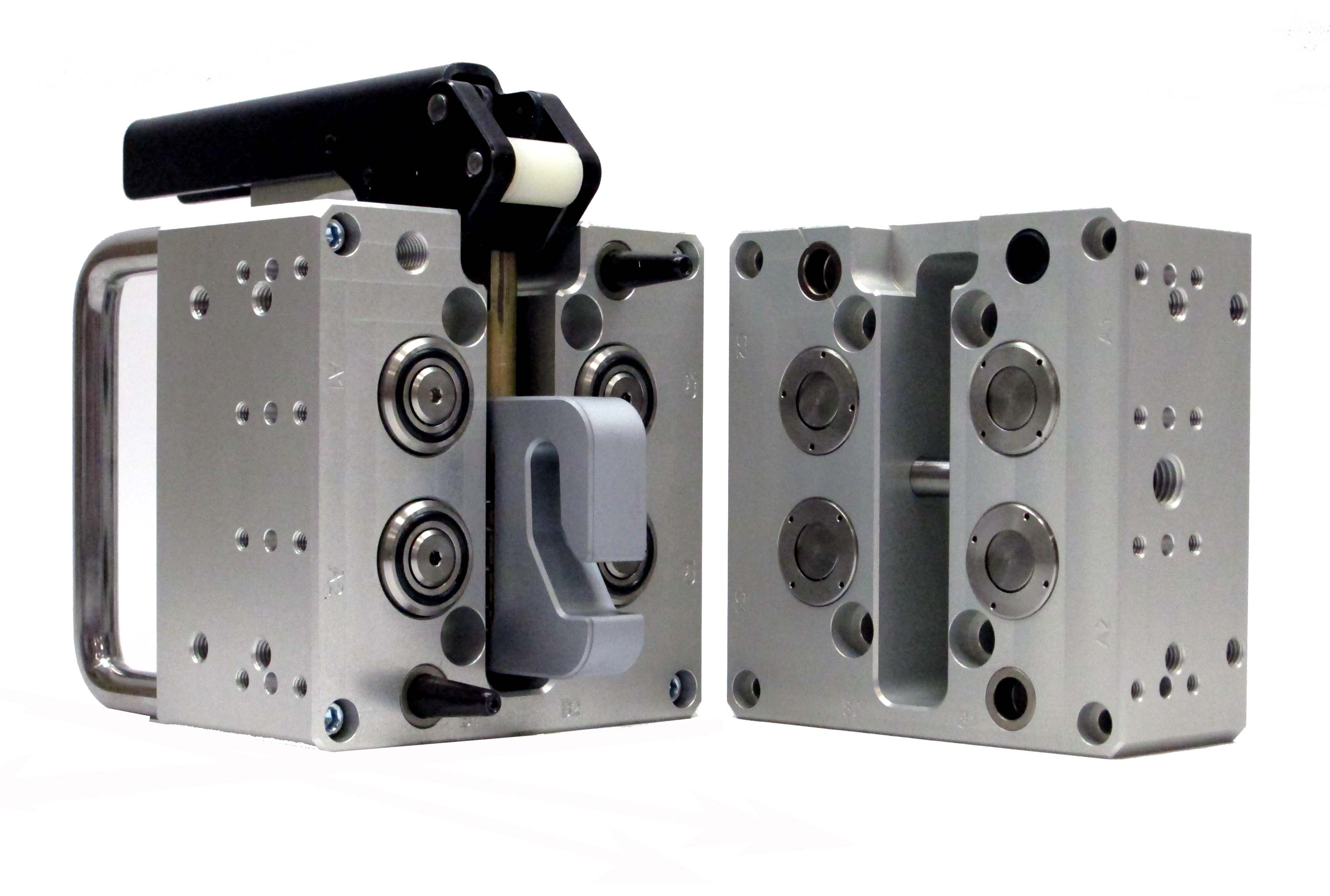

GH1 Utility Coupler
GH1 Utility Coupler

SpecificationsDrawingsManuals3D CAD ModelsCompatible Drive CylindersCompatible Modules




General Duty: Medium
# of Integrated Ports: 4
Port Size: 3/8
Port Type: Checked
# of Module Flats: 3
Weight: 6.75 lb
Operational Temperature Range: -20 °F - 150 °F
