Other Modules: NAx


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Other Modules > NAx





Product Advantages
  • Reduced stack height for tool drop off.
  • High durability.
  • Compact size.
  • Easy robot programming.
  • Highly customizable.

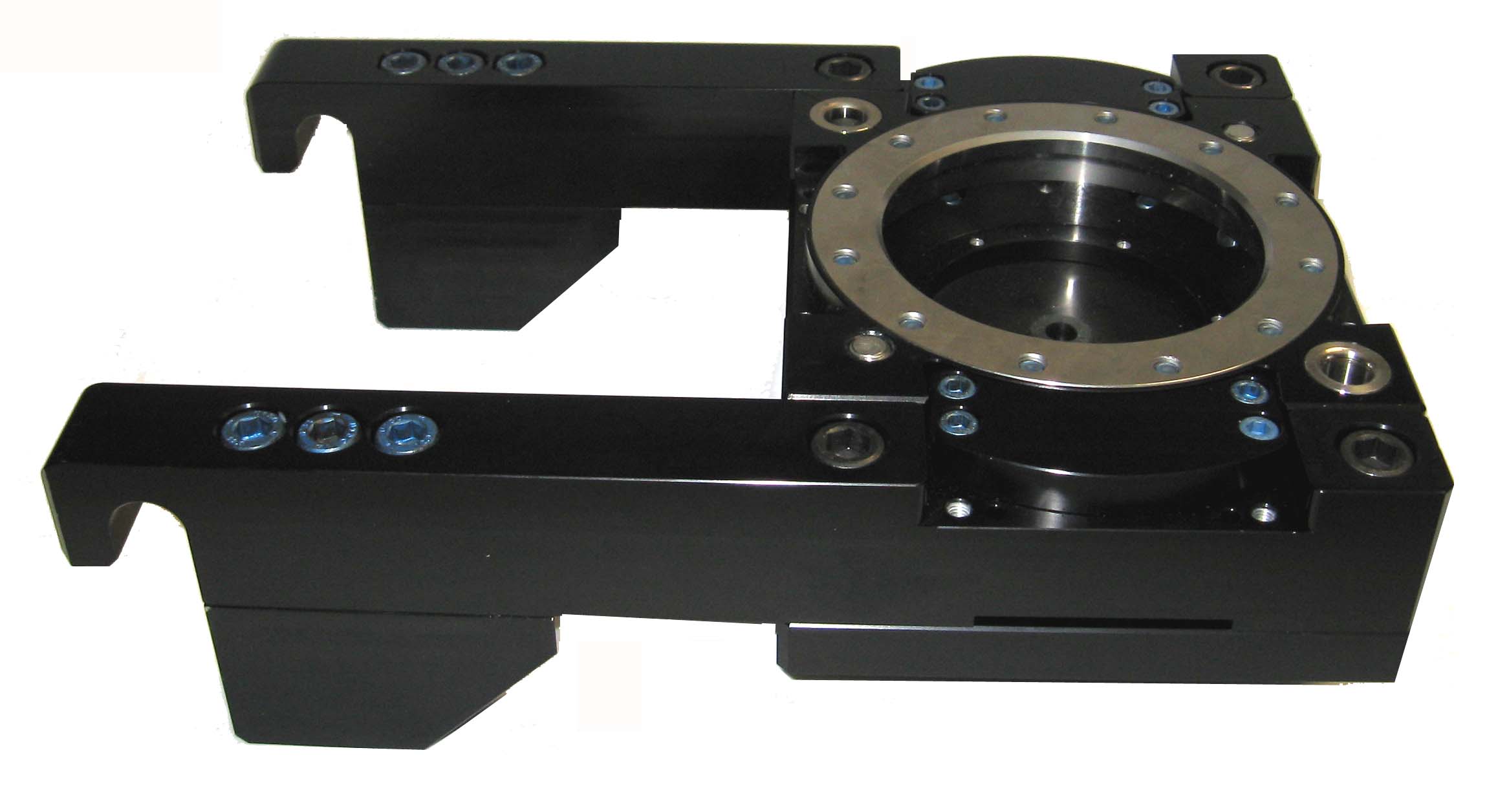

NA2 and NA3 Modules
NA2 and NA3 Modules

Part NumberSideNotes
9121-NA2-TTTool Stand Integrated Hook Module, Right Hand
9121-NA3-TTTool Stand Integrated Hook Module, Left Hand
9121-NA4-TTTool Stand Integrated Hook Module, Right Hand, 2" Longer
9121-NA5-TTTool Stand Integrated Hook Module, Left Hand, 2" Longer

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Tool Stand Integrated Hook Module, Right Hand (NA2), Left Hand (NA3), Right Hand, 2" Longer (NA4), and Left Hand, 2" Longer (NA5) - Tool side only
Weight: Max recommended tool weight: 500 lbs.
Materials:
  • Hooks: Hardened steel, black oxide
  • Arms: T6 aluminum, black anodize
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
