Ethernet/EtherNetIP/EtherCAT/PROFINET 100Mb Pass-Through Modules: ME10A


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Control and Signal Modules > ME10A





Product Advantages
  • Electrical module to pass 10/100-Mbit Ethernet signals and Auxiliary Power connections.
  • For applications requiring pass-through of Cat5e industrial ethernet cable.
  • Female M8, 4-pin D-coded shielded Ethernet connector.
  • M8, 4-pin A-coded unshielded power connector.
  • Finger-safe contacts on Master side.
  • IPX5 protection class when coupled.
  • Supports POE+

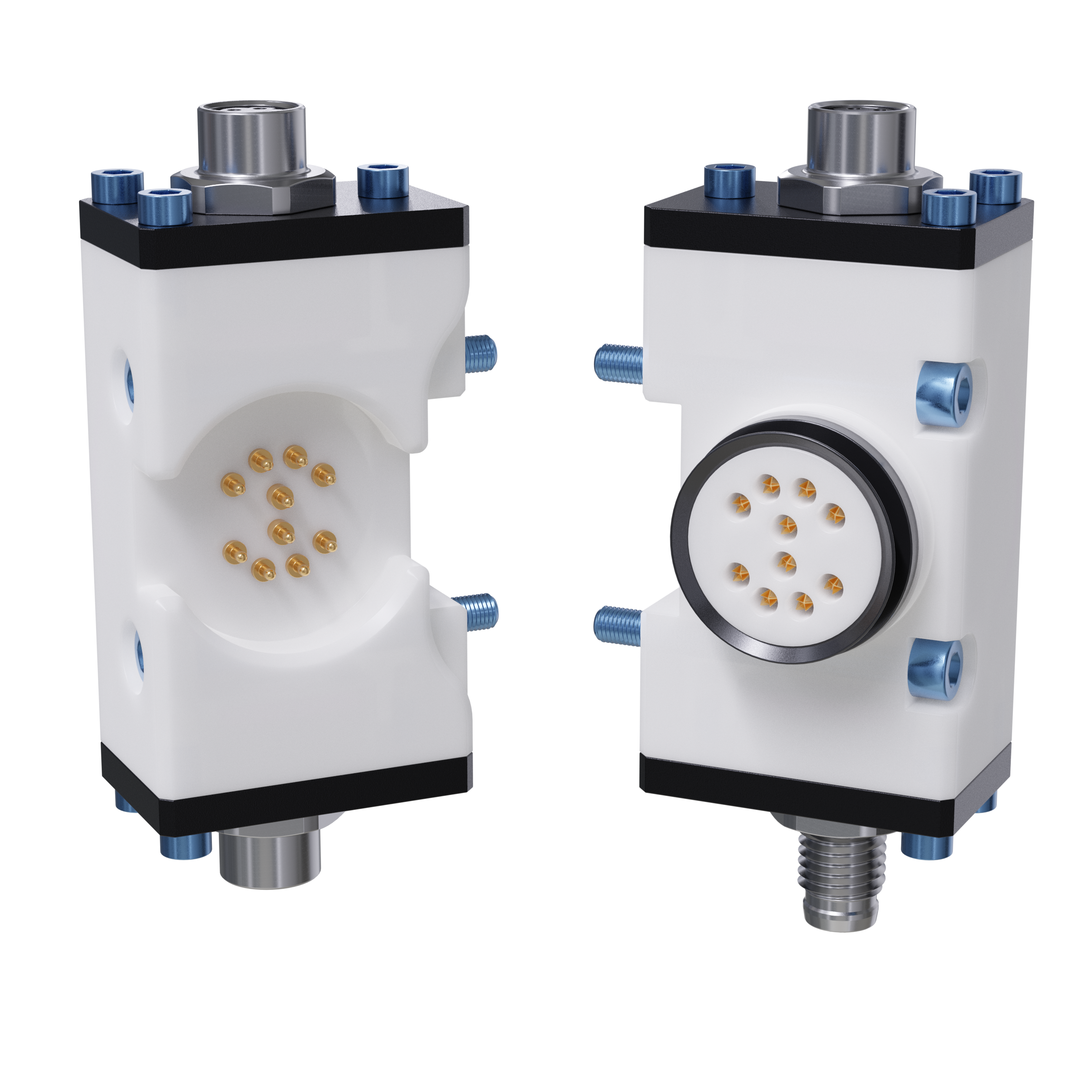

ME10A Master and Tool Modules
ME10A Master and Tool Modules

Part NumberSideNotesEDS File
9120-ME10A-MMME10A Electrical Module, M8 D-Code, M8 A-Code, Master Side
9120-ME10A-TTME10A Electrical Module, M8 D-Code, M8 A-Code, Tool Side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: ME10A Electrical Module, M8 D-Code, M8 A-Code
Weight: Master (0.13lbs/0.06kg) Tool (0.11lbs/0.05kg)
Materials:
  • Glass filled acetal housing
  • Anodized aluminum cover plates
  • Precious-metal-plated contact pins
  • Nitrile seal
# Pins: Ethernet (4) Power (4)
Elec. Rating: Signal (.6Amp/60VDC max.) Power (3Amp/60VDC max.)
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
