Adapter Assemblies: JJ51


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Other Modules > JJ51





Product Advantages
  • Adapter plate to mount module with J16 pattern to QC-21 Flat B.

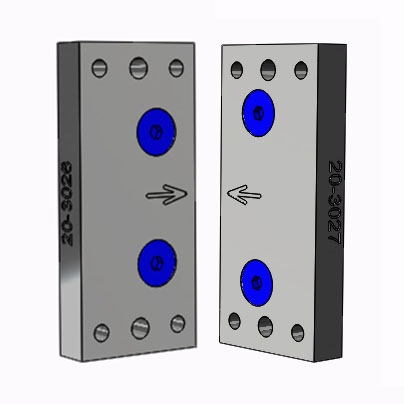

JJ51 Modules (Master and Tool)
JJ51 Modules (Master and Tool)

Part NumberSideNotes
9120-JJ51-MMModule Adapter QC-21M Flat B to J16 Pattern - Master side
9120-JJ51-TTModule Adapter QC-21T Flat B to J16 Pattern - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Module Adapter QC-21 Flat B to J16 Pattern
Weight: Master 0.07 lbs (0.03 kg)
Tool 0.065 lbs (0.03 kgs)
Materials:
  • Aluminum adapter plate
  • Steel dowel pins.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
