Hydraulic Modules: F2Hx14x


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > F2Hx14x





Product Advantages
  • Provides low or high pressure hydraulic port(s) in a single module.
  • Self-sealing coupler for the hydraulic connection minimizes drips.
  • Pre-alignment pins insure proper engagement of the coupler.
  • The customer's robot must overcome the pressure in the couplers when driving the Master and Tool modules together. The pump should be turned off during tool changes.
  • The customer must use flexible lines for all plumbing connections. Hard pipe connections are not acceptable as they will not allow proper alignment and engagement of the coupler halves.

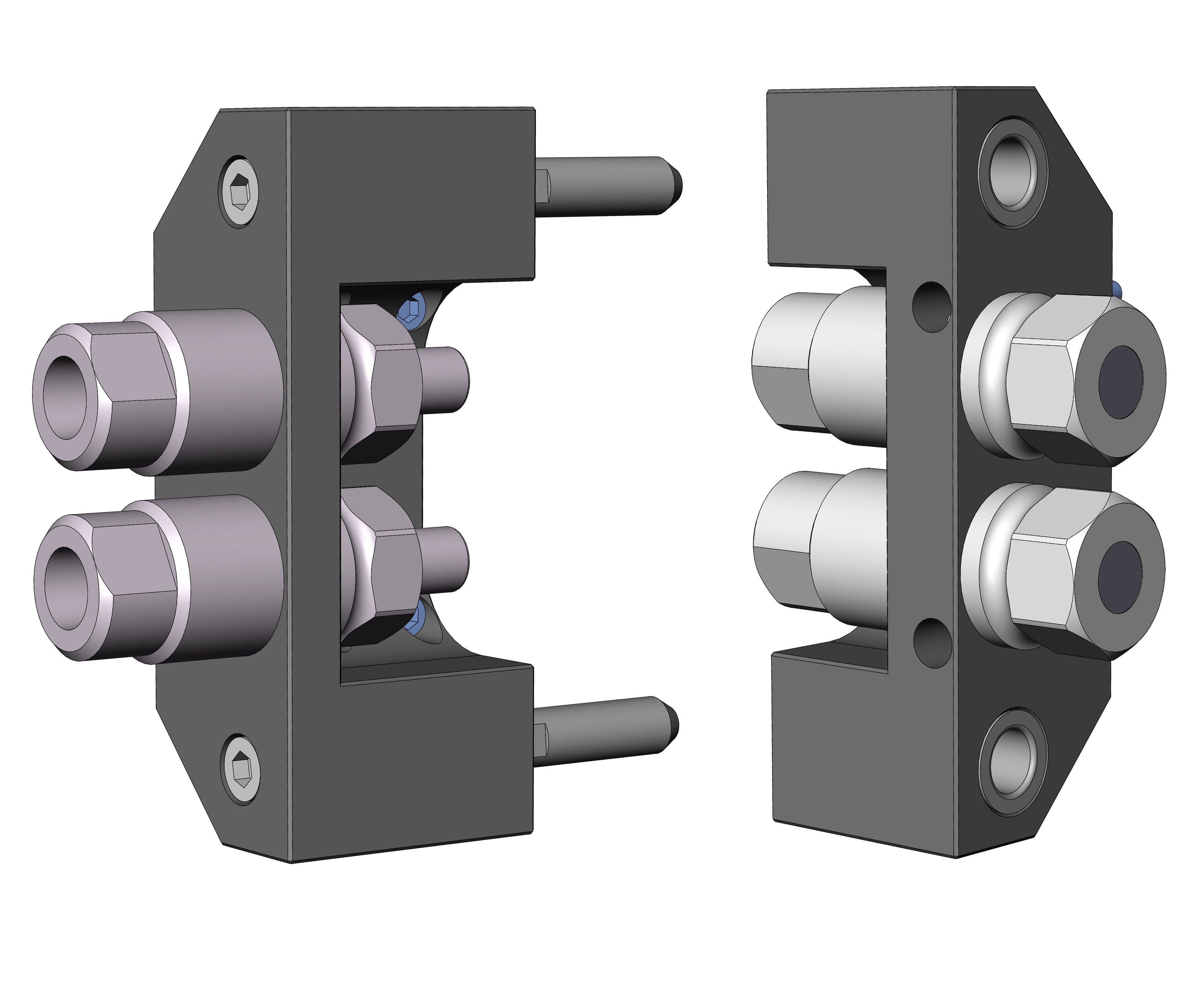

F2HN14B Modules (Master and Tool)
F2HN14B Modules (Master and Tool)

Part NumberSideNotes
9120-F2HG14A-MMHydraulic Module, (2) Low-Pressure G1/4, Master side
9120-F2HG14B-MMHydraulic Module, (2) High-Pressure G1/4, Master side
9120-F2HN14A-MMHydraulic Module, (2) Low-Pressure 1/4 NPT, Master side
9120-F2HN14B-MMHydraulic Module, (2) High-Pressure 1/4 NPT, Master side
9120-F2H14PC-TTF2H14 Protective Cover - Tool side
9120-F2HG14A-TTHydraulic Module, (2) Low-Pressure G1/4, Tool side
9120-F2HG14B-TTHydraulic Module, (2) High-Pressure G1/4, Tool side
9120-F2HN14A-TTHydraulic Module, (2) Low-Pressure 1/4 NPT, Tool side
9120-F2HN14B-TTHydraulic Module, (2) High-Pressure 1/4 NPT, Tool side

SpecificationsCompatible QCsDrawingsManuals

Description: Hydraulic Module, (2) Ports with Pressure Ratings and Pipe Threads as Listed
Cv Rating: 1/4 for 0.46
Weight: F2Hx14x Master 1.56 lbs (0.71 kg)
F2Hx14x Tool 1.34 lbs (0.61 kg)
F2H14PC Tool 0.75 lbs (0.34 kg)
Materials:
  • Aluminum housings
  • Steel bushings and pins
  • Stainless steel couplers
  • Seals: Viton except as noted.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
