Radially Compliant Deburring Model RCE-230


Skip Navigation LinksHome > Products > Material Removal Tools > Robotic Material Removal Models > RCE-230



Product Advantages
  • Ideally suited for removal of parting lines and flash on parts.
  • High speed electric motor with variable speed control.
  • Unit also deburrs edges, significantly reduces cycle time.
  • The tool does not have a proprietary controller and can be controlled through compatible VFDs.
  • Built-in compliance reduces robot programming.
  • Cutting force adjustable on-the-fly.
  • Mounts to robot arm on rear or side of deburring unit.
  • Utilizes standard tungsten-carbide industrial bits.
  • Minimal chattering and vibration.
  • Great replacement for hand deburring operations.

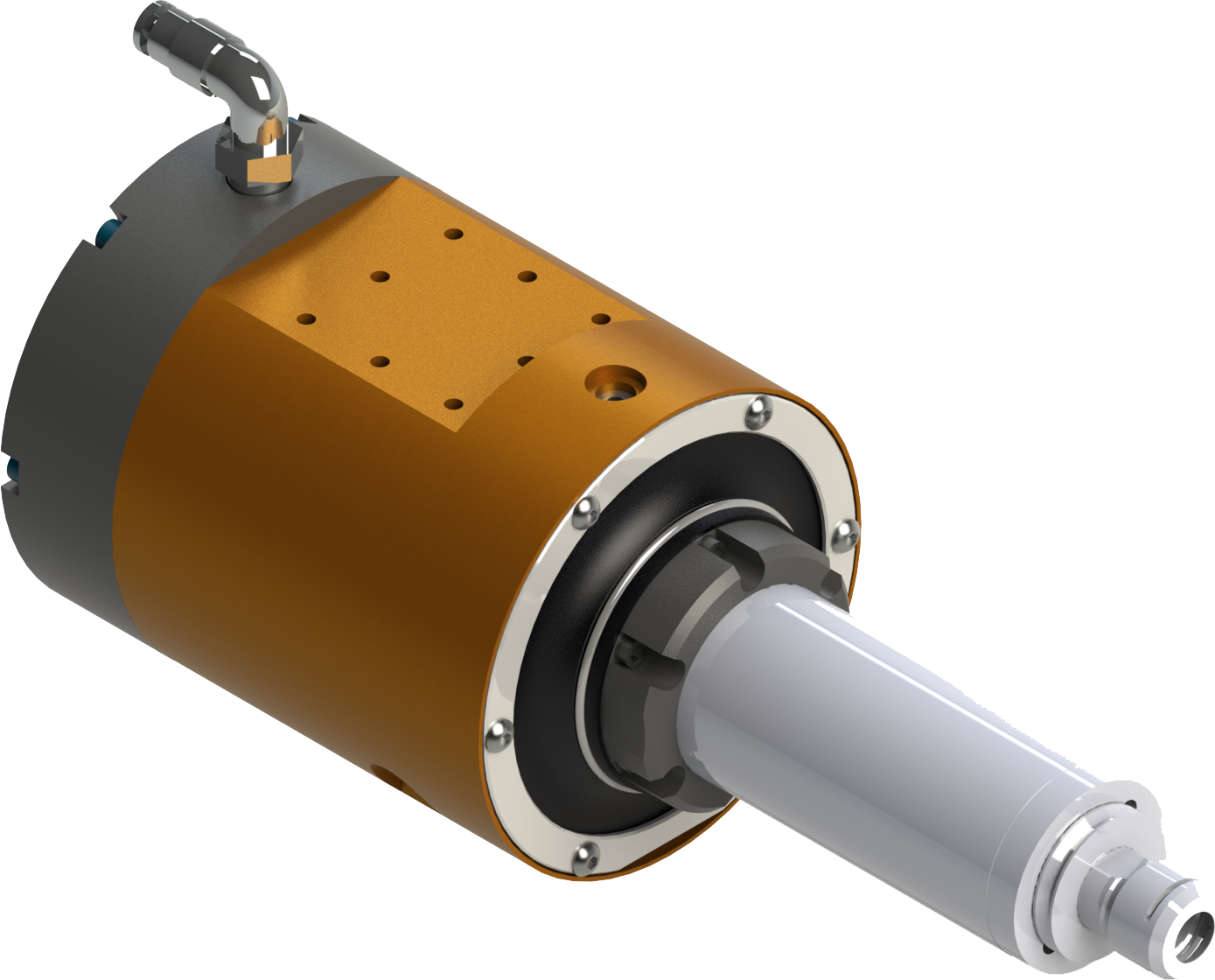

Radially Compliant Electric Motor Deburring Tool, 231 Watts, 5,000-50,000 RPM
Radially Compliant Electric Motor Deburring Tool, 231 Watts, 5,000-50,000 RPM

SpecificationsAccessoriesDrawingsManuals3D CAD ModelsCablesControls


Weight (without mounts) 3.75 lb
Compliance Travel @ Collet 0.28 in
Compliance Travel Recommended 0.12 in
Compliance Force (Pneumatically Variable) 0.4 lbf - 1.9 lbf
Speed Range 5,000 - 50,000 RPM
Power Connection Bare Leads
Air Connections (Spindle) 5/32" Tube (4mm), for sealing air
Air Connections (Compliance) 5/32" Tube (4mm)
Collet ER-11 / 1/4" Standard
Power 230 W @ 50000 rpm
Mounting Feature Side and Rear Patterns
