Product Description

Power circuits are electrically isolated both from each other and the Tool Changer.
Power circuits are designed to be water-resistant, but they are not waterproof.
Compliant spring probes are provided on the Master and fixed contact pins on the Tool.
Master spring pins are recessed below an insulated surface on both the power circuits.
DANGER! - For electrical modules using > 60 VDC or 42 VAC, NO contact should be attempted before removing power. This especially includes separation or insertion of the mating connectors or any contact with the Tool Changer or its components.

REP7 Modules (Master and Tool)

Part Number	Side	Notes

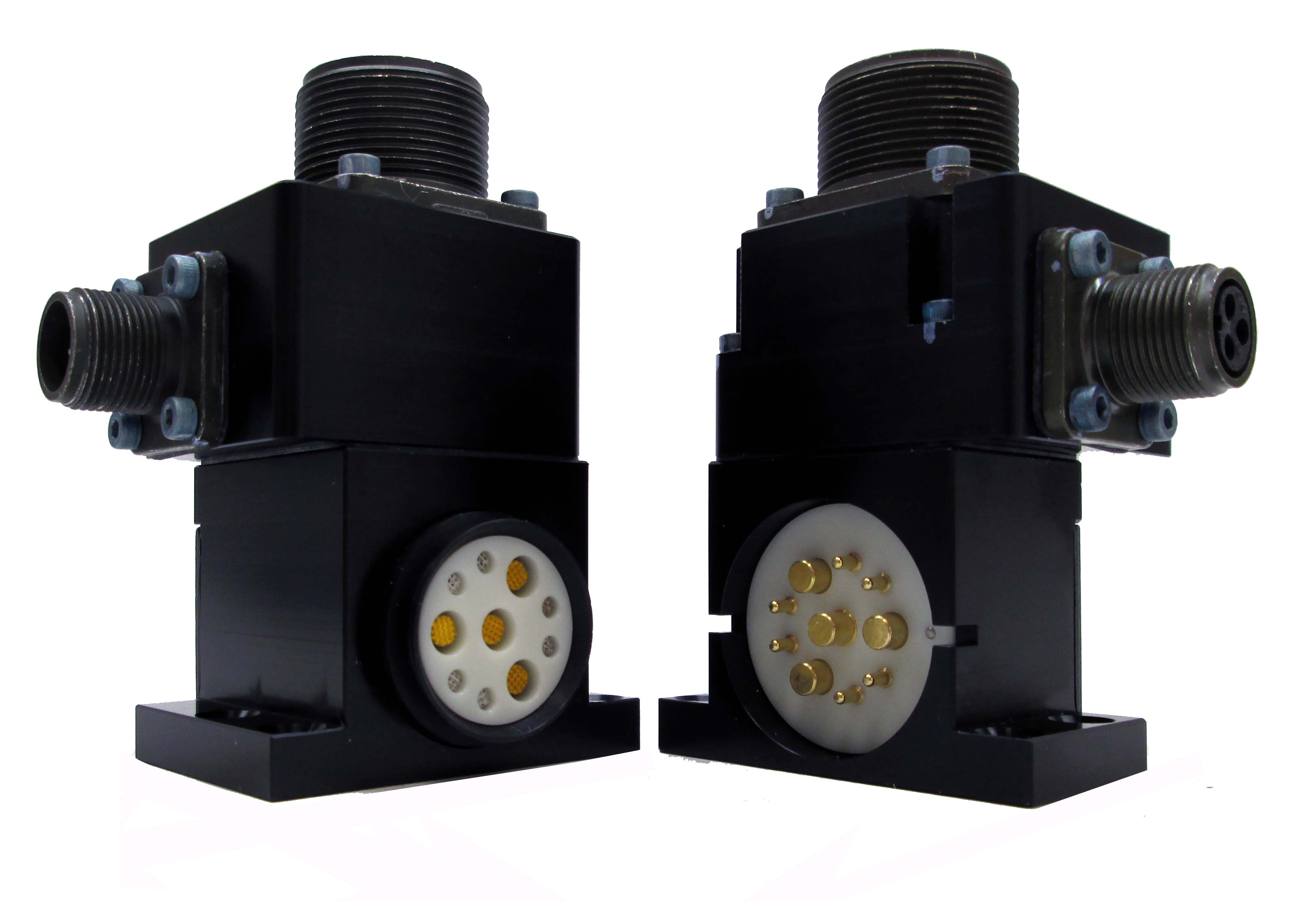

9120-REP7-M	M	Servo Module with 4-pin MS Power, 3-pin MS Brake - Master side
9120-REP7-T	T	Servo Module with 4-pin MS Power, 3-pin MS Brake - Tool side

Specifications

Compatible QCs

Connectors and Cables

Drawings

Manuals

3D CAD Models

Description:

Servo Module with 4-pin MS Power Connector, 3-pin MS Brake

Weight:

Master 0.64 lbs (0.29 kg)
Tool 0.56 lbs (0.25 kg)

Materials:

# Pins:

Servo Power - 4
Servo Brake - 3

Elec. Rating:

13 Amp, 500VAC/700VDC (Pins 1, 4, 7, 10)
5 Amp/250VAC max (Pins 2, 3, 5, 6, 8, 9)

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
