Description: |

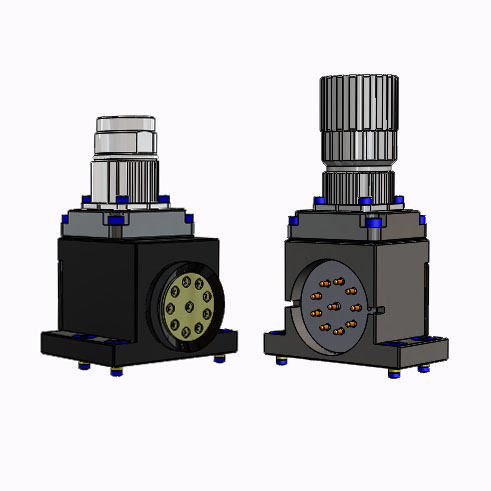

Servo Module with Intercontec 6-Pin M23 Connector |
|
Weight: |
Master x lbs (x kg)
Tool x lbs (x kg) |
|
Materials: |
- Precious-metal-plated pins
- Amphenol connectors
|
|
Elec. Rating: |
10 Amp/630VDC |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-REP6.pdf |
REP6 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-REP6-T |
Intercontec 6-Pin M23 Servo Module - Tool Side
|
| 9120-REP6-M |
Intercontec 6-Pin M23 Servo Module - Master Side
|
|
