| 9121-PH3-M | M | Power Module, (3) 600A, 800V Contacts, #2 to #4/0 Cable - Master side |
| 9121-PH3-T | T | Power Module, (3) 600A, 800V Contacts, #2 to #4/0 Cable - Tool side |
|
|
Description: |

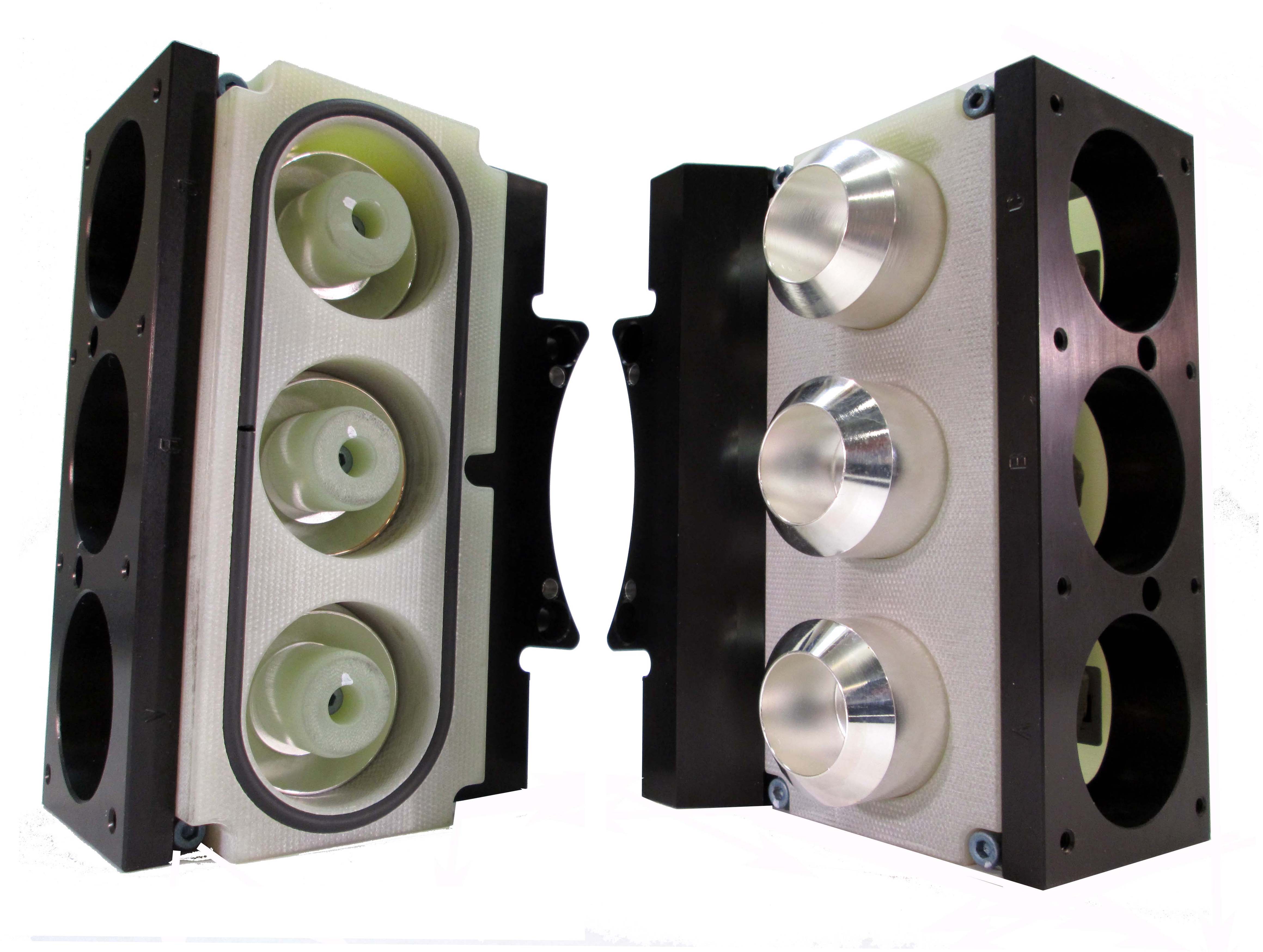

Power Module, (3) 600A, 800V Contacts, #2 to #4/0 Cable |
|
Weight: |
Master 6.07 lbs (2.75 kg)
Tool 4.98 lbs (2.26 kg) |
|
Elec. Rating: |
600 Amp/800V @ 100% Duty Cycle |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-PH3.pdf |
PH3 Module Drawing
|
|
| 9620-20-F-PH3.pdf |
PH3 High Current Module Manual
|
|
| 9121-PH3-T |
Power Tool module with (3) 600A, 800V Contacts, #2 to #4/0 Cable
|
| 9121-PH3-M |
Power Master module with (3) 600A, 800V Contacts, #2 to #4/0 Cable
|
|
| 9005-20-1948 | (2) 1-1/2 NPT, (1) 3/4 NPT Fitting Plate Kit |
| 9005-20-1954 | (3) 1" NPT Fitting Plate Kit |
|
|
