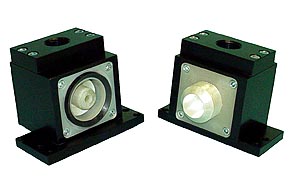

| 9120-PG0-M | M | 1 contact, 600 Amps (not to exceed 800 Volts) high current module (Adapter plate needed) - Master side |
| 9120-PG0-T | T | 1 contact, 600 Amps (not to exceed 800 Volts) high current module (Adapter plate needed) - Tool side |
|
|
Description: |
1 contact, 600 Amps (not to exceed 800 Volts) module (Adapter plate needed) |
|
Weight: |
3.1 lbs (1.41 kg) |
|
Materials: |
- Silver-plated copper contact
- Aluminum housing
- Nitrile seal.
|
|
Elec. Rating: |
600 Amp/800V max. @ 100% Duty Cycle |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
QC-110
| |
|
|
Flats A, B
For PGO-M use 9120-PG0-M-4568 (includes adapter plate)
Extends beyond Master side mounting plane
For PGO-T use 9120-PG0-T-4570 (includes adapter plate)
Extends beyond Tool side mounting plane. |
| Yes |
|
QC-160
| |
|
|
Flats A, B
Use 9120-PG0-M-4588 and 9120-PG0-T-4570 (includes adapter plate)
Extends beyond Master side mounting plane. |
| Yes |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-PG0.pdf |
PG0 Module Drawing
|
|
| 9620-20-F-PG0.pdf |
PG0 High Power Module Manual
|
|
| 9120-PG0-T |
High current Tool module, 1 contact, 600 amps, with Adapters
|
| 9120-PG0-M |
High current Master module, 1 contact, 600 amps, with Adapters
|
|
|
| 9120-FP-34NPT-PG0 | Flange for NPT 3/4 strain relief for PG0 |
| 9120-FP-PG21-PG0 | Fitting Plate Kit for PG0 with PG21 Thread |
|
| 9120-FP-34NPT-PG0 | 3/4 NPT Fitting Plate Kit |
|
|
