Primary Current Modules: PB4

Product Description

Designed to carry high current from a power supply to customer tooling.
(1) rhodium-plated copper contacts, capable of carrying 200 Amps when coupled.
Voltage should not exceed 600 Volts.
Uses advanced, patented, cone-mating technology to transfer current from Master to Tool.
Mating conical surface provides a large contact area, excellent misalignment capability, and allow efficient coupling/uncoupling without high spring forces or excessive wear.
Power to be disconnected and discharged prior to tool changes. Module is not a switch.
Contact tip easily replaced, if required.
Recessed and shrouded Master side contact prevent accidental human contact.
Center pin extended for first mate/last break protection.
1 1/4 NPT fitting plates currently available.

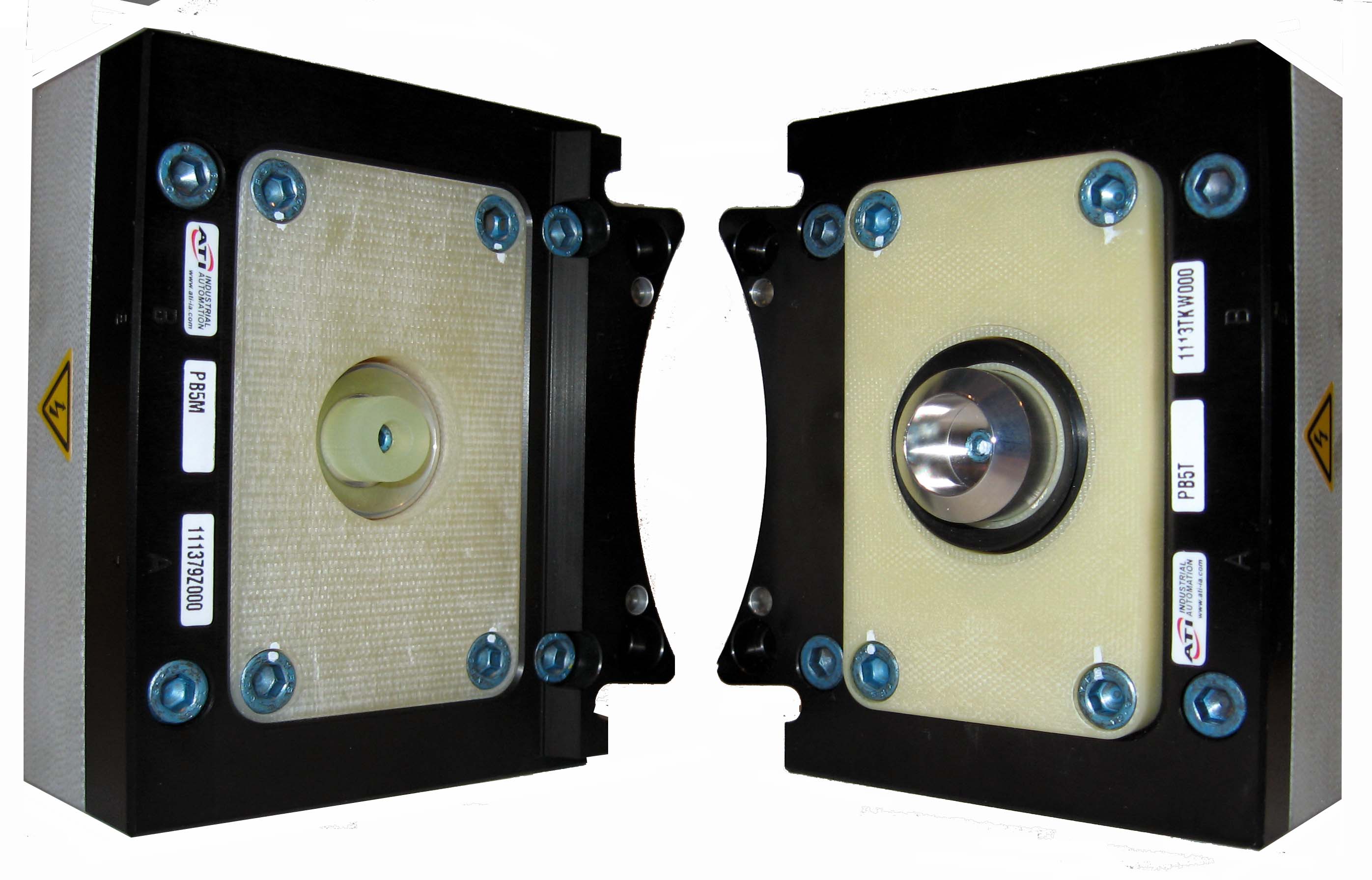

PB4 Modules (Master and Tool)

Part Number	Side	Notes
9121-PB4-M	M	Primary Current Module, (1) contacts, #2 wire, 200A rating - Master side
9121-PB4-T	T	Primary Current Module, (1) contacts, #2 wire, 200A rating - Tool side

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Fitting Plates

Description:

Primary Current Module, (1) contacts, #2 wire, 200A rating

Weight:

Master 2.3 lbs (1.04 kg)
Tool 2.3 lbs (1.04 kg)

Materials:

# Pins:

Elec. Rating:

200 Amp/600V max. @ 100% Duty Cycle

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
