Description: |

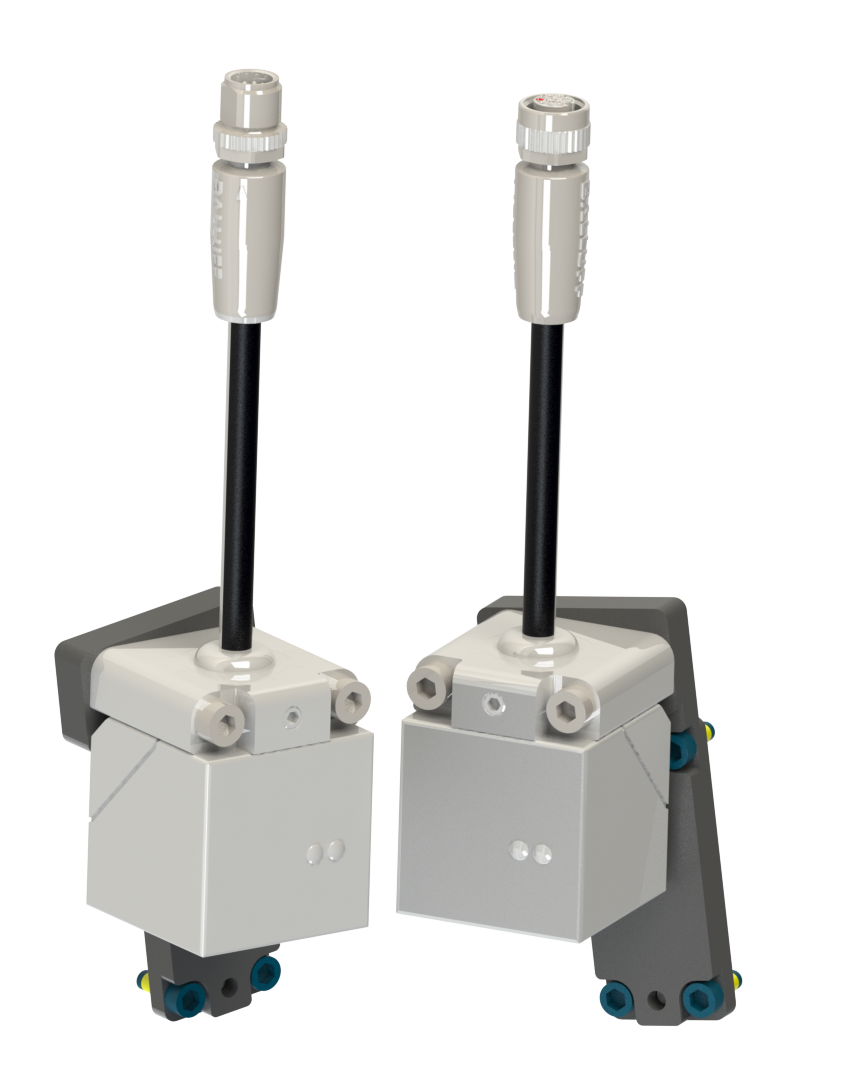

Inductive Coupler Module, PNP-Compatible, 8X Signal Pass Thru with 0.2m Pigtail M12 12-Pin Connector |
|
Weight: |
NB8A Master - 0.5 lbs (0.23 kg)
NB8A Tool - 0.50 lbs (0.23 kg) |
|
Materials: |
- Thermoplastic inductive coupler housing.
- Anodized aluminum adapter bracket with SS screws.
|
|
Elec. Rating: |
Tool side total output current - 500 mA
Tool side total output voltage - 24VDC +/- 10%
Master side required supply current - 1A
Master side required supply voltage - 24VDC +/- 10% |
|
Operational Temperature Range: |
23 ｰF - 149 ｰF (-5 ｰC - 65 ｰC) |
*CAUTION: Exceeding supply voltage rating will permanently damage module.
**CAUTION: Accidental electrical shorts during installation can permanently damage module. Refer to manual.
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-NB8A.pdf |
NB8A Inductive Coupler Module Customer Drawing, PNP-Compatible
|
|
| 9620-20-E-NB8A.pdf |
NB8A Induction Module Manual
|
|
| 9120-NB8A-M |
Balluff-Labeled Base Inductive Coupler Master Module, PNP-Compatible, 8X Signal Pass Thru with 0.2m Pigtail Male M12 12-Pin Connector
|
| 9120-NB8A-T |
Balluff-Labeled Remote Inductive Coupler Tool Module, PNP-Compatible, 8X Signal Pass Thru with 0.2m Pigtail Female M12 12-Pin Connector
|
|
