Electrical Modules: MTA6A

Product Description

7-pins, 6 Power plus Protective Earth pin connected to module housing.
45 Amp, 500VAC/700VDC.
Safety ground contact provided to pass ground through Master to Tool. Module housings are grounded.
Amphenol MS-style connectors for interfacing on the Master and Tool modules.
Fluid-resistant seal on contacts.
Module should be mounted to a Tool Changer, QC-100 or larger, to handle maximum rated current and 100% duty cycle without overheating.
Allowable maximum ambient temperature under conditions of maximum current is 100 degrees F.
Master module may extend high above Master plate. Adjust robot interface plate as needed to compensate.
Tool module may extend below Tool plate.
Finger-safe Master pin block prevents accidental contact when live.
Fully-potted internally for heat transfer and environment sealing.

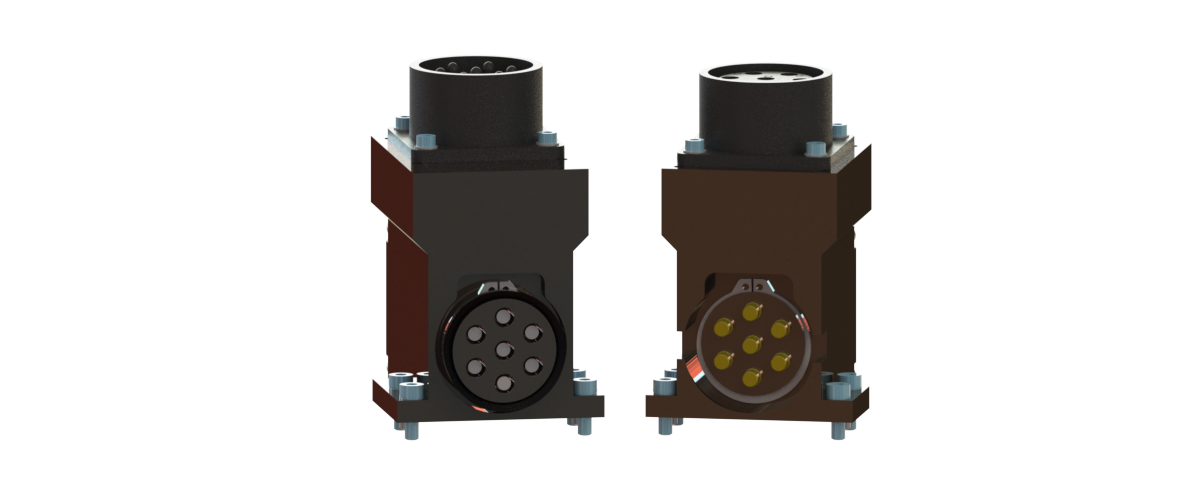

MTA6A Modules (Master and Tool)

Part Number	Side	Notes
9120-MTA6A-M	M	High Current 45 Amp module with 6 + PE contacts, Mil Spec connector, Finger-safe pin block - Master side
9120-MTA6A-T	T	High Current 45 Amp module with 6 + PE contacts, Mil Spec connector - Tool side

Specifications

Compatible QCs

Connectors and Cables

Drawings

Manuals

3D CAD Models

Description:

High Current 45 Amp module with 6 + PE contacts, Mil Spec connector, Finger-safe pin block

Weight:

Master 1.4 lbs (0.64 kg)
Tool 1.2 lbs (0.54 kg)

Materials:

# Pins:

7-Pins, 6 Power plus Protective Earth pin connected to module housing.

Elec. Rating:

45 Amp, 500VAC/700VDC

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
