Electrical Modules: KR5B-M,KRB-T

Product Description

5-pin.
3 Amp/110VDC.
0-16 Tool-ID on Tool side.
No connector on Tool side.
For QC-11 only.
No-Touch contacts on Master module.
Dust and moisture seal on contacts.
WARNING: Contacts on Tool Module protrude past housing. Use caution to avoid damaging contacts during assembly or maintenance.
NOTE: The KR5B Master includes supplemental mounting fasteners that are designed to work with special SIP-8604. To utilize the supplemental fastening features, use SIP-8604 or a similar SIP.

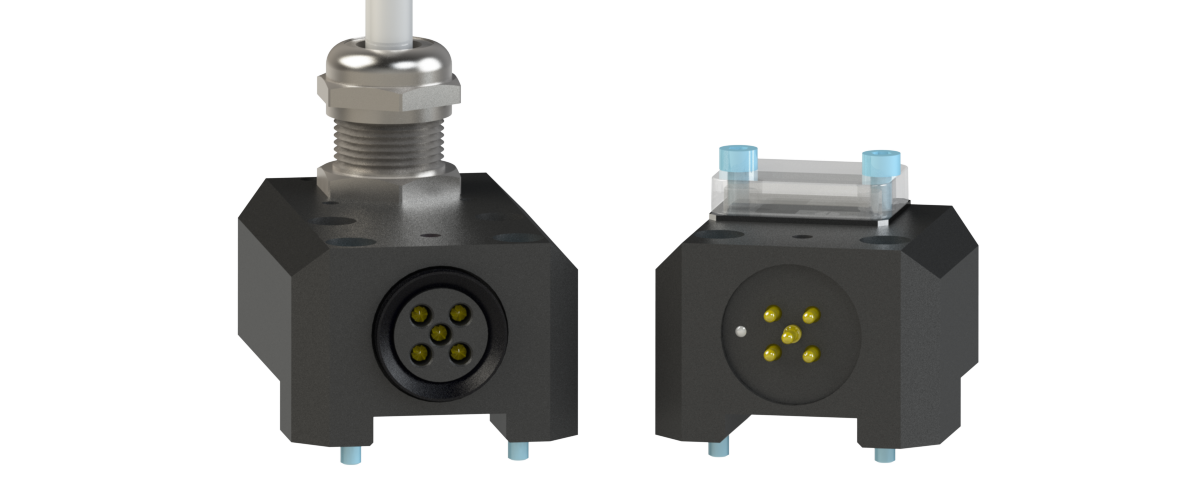

KR5B Master and KRB Tool Modules

Part Number	Side	Notes
9120-KR5B-M	M	Electrical Module, 5-Pin M12 cordset - Master side
9120-KRB-T	T	Electrical Module, 0-16 Tool-ID, No Connector - Tool side

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Description:

Electrical Module, 5-Pin M12 cordset on Master; 0-16 Tool ID, No Connector on Tool

Weight:

Master 0.46 lbs (0.21 kg)
Tool 0.21 lbs (0.10 kg)

Materials:

# Pins:

Elec. Rating:

3 Amp/110VDC

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
