| 9121-EF19-M | M | Fanuc Servo Module with 4-Pin Power Connector - Master side |
| 9121-EF19-T | T | Fanuc Servo Module with 4-Pin Power Connector - Tool side |
|
|
Description: |

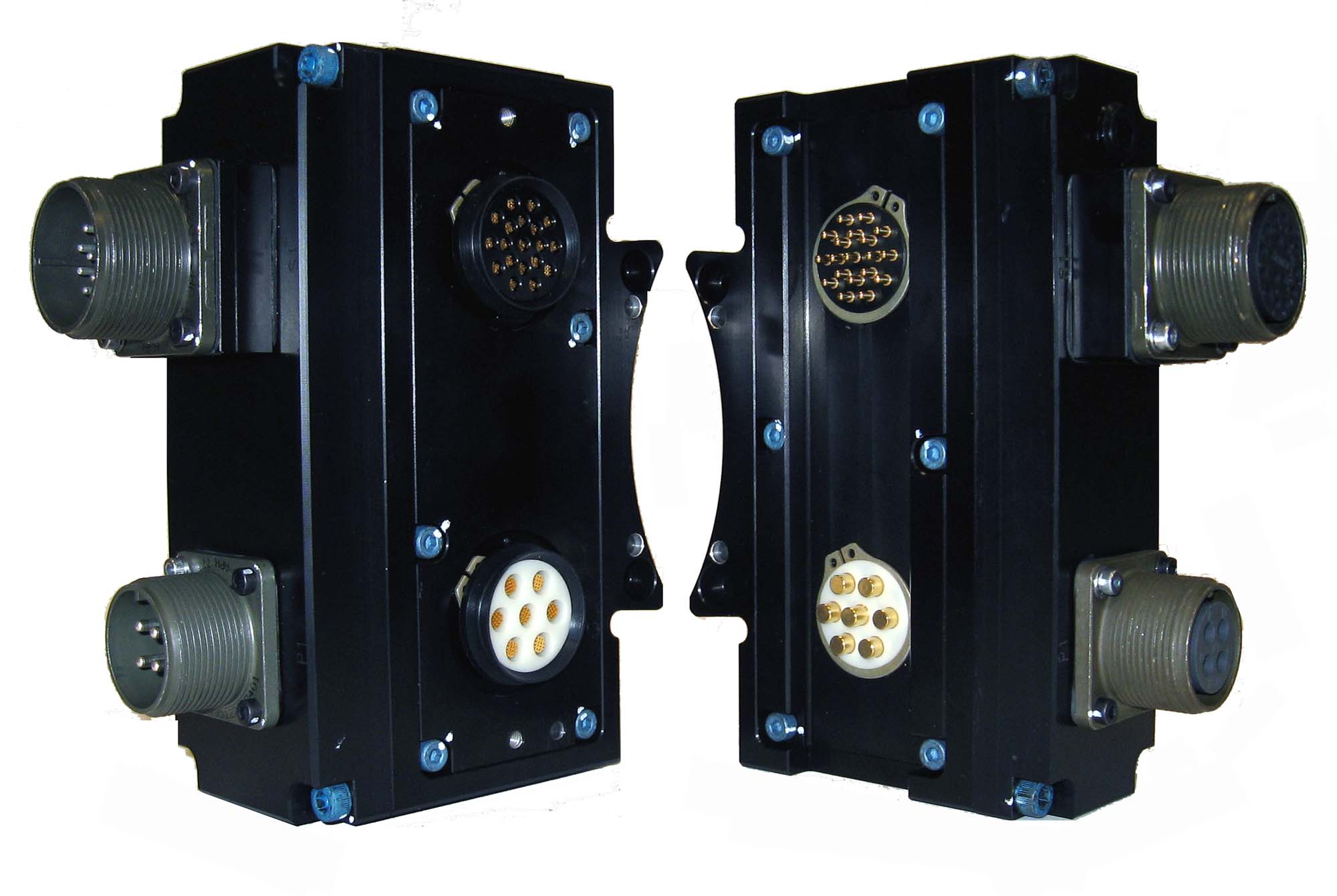

Fanuc Servo Module with 4-Pin Power Connector |
|
Weight: |
Master 2.60 lbs (1.18 kg)
Tool 2.25 lbs (1.02 kg) |
|
Materials: |
- Aluminum housings
- Delrin® fitting plates
- Nitrile seals
- Precious-metal-plated contacts
- Ultem® and Delrin® blocks.
|
|
# Pins: |
Power - 7
Signal - 19 |
|
Elec. Rating: |
Motor Current - 13 Amp, 500VAC/700VDC max.
Encoder Current - 3 Amp, 250VAC/30VDC max. |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
|
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-EF19.pdf |
EF19 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9121-EF19-M |
Fanuc Servo Master module with 4 pin power, 17 pin encoder, no brake, no battery
|
| 9121-EF19-T |
Fanuc Servo Tool module with 4 pin power, 17 pin encoder, no brake, no battery 1
|
|
|
