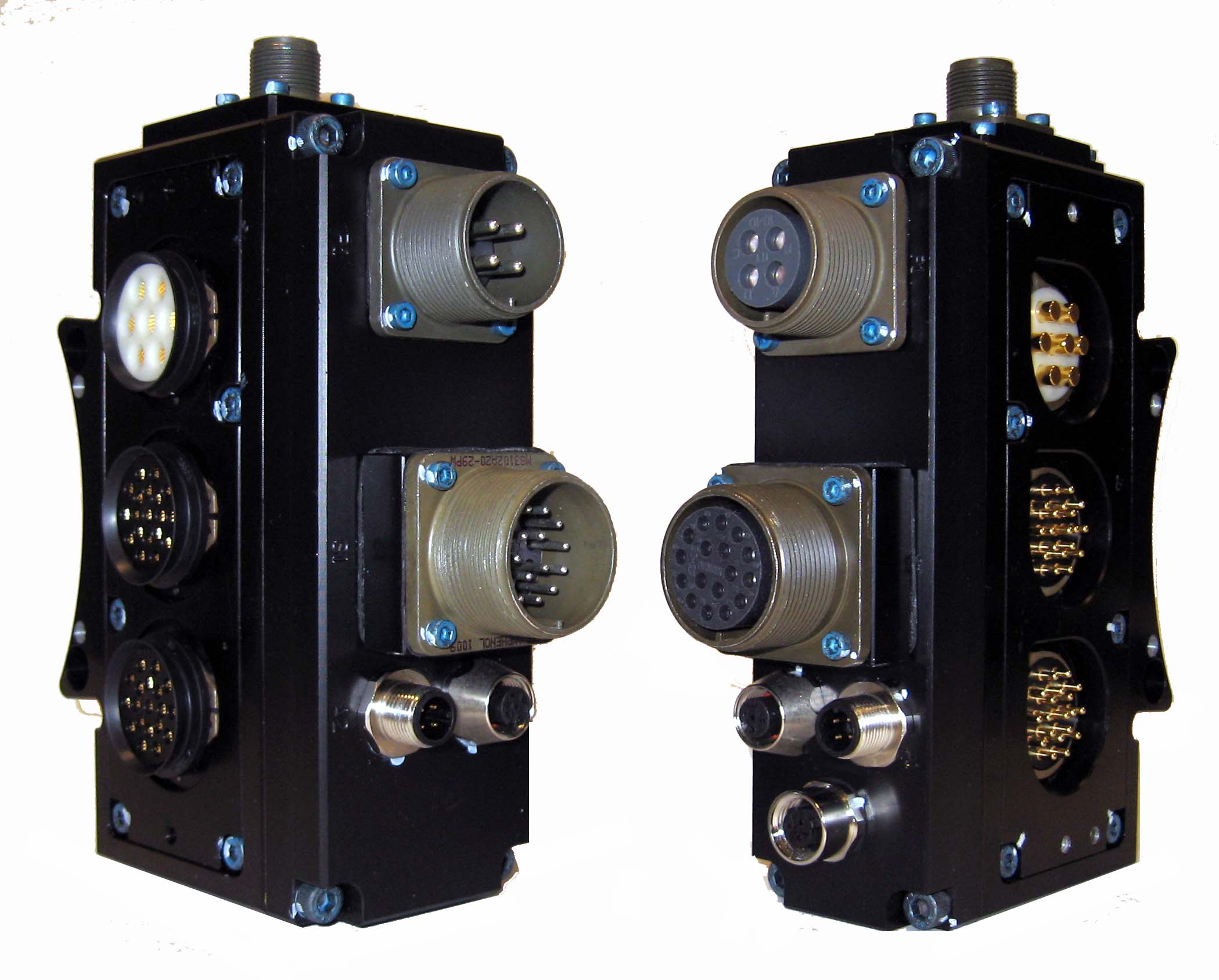

| 9121-EF16-M | M | Servo Module with (3) Amphenol Connectors and (2) M12 Eurofast Connectors - Master side |
| 9121-EF16-T | T | Servo Module with (3) Amphenol Connectors and (2) M12 Eurofast Connectors and (1) 1/2-20 UNF Microfast Connector - Tool side |
|
|
Description: |
Servo Module with (3) Amphenol Connectors and (2) M12 Eurofast Connectors on the Master side and (3) Amphenol Connectors and (2) M12 Eurofast Connectors and (1) 1/2-20 UNF Microfast Connector on the Tool side |
|
Weight: |
Master 2.80 lbs (1.27 kg)
Tool 2.60 lbs (1.18 kg) |
|
Materials: |
- Aluminum housings
- Delrin® fitting plates
- Nitrile seals
- Precious-metal-plated contacts
- Ultem® and Delrin® blocks.
|
|
# Pins: |
Power - 7
Signal - 19 |
|
Elec. Rating: |
Motor Current - 13 Amp, 500VAC/700VDC max.
Encoder Current - 3 Amp, 250VAC/30VDC max. |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
|
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
|
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-BATTERY BACKUP-3-PIN.pdf |
Servo module 3-pin battery backup drawing
|
| 9630-20-EF16.pdf |
EF16 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9121-EF16-T |
Tool Servo Module with 3 Amphenol and (3) M12 Connectors
|
| 9121-EF16-M |
Master Servo Module with 3 Amphenol and (2) M12 Connectors
|
|
|
