ATI Develops Cobot-Ready Accessory Kits for Universal Robots
Complete UR+ Certified end-of-arm packages
Cobot-Ready Accessory Kits from ATI offer users a simple and effective way to increase the flexibility of collaborative robots. ATI’s Cobot-Ready Accessory Kits are suited for a wide variety of industries and application types. Tasks such as machine tending, finishing processes, part inspection and analysis, assembly, and many other complex tasks are simple to implement with these all-in-one packages.

The AOV-10 Axially-Compliant Orbital Sander is the ideal robotic solution for surface preparation and finishing. With built-in compliance, the AOV-10 is well-suited for many different robotic application types—even those that require a light touch.

The UR+ Certified AOV Kit includes AOV-10 Sander, 3M media kit, air supply kit, interface plate, mounting hardware, assembly tool, and URCap software.

The Axia80 Force/Torque Sensor is a high-performance, low-cost sensor that measures all components of force and torque. It offers the highest resolution, accuracy, and stiffness available and gives your cobot the sense of touch to adapt to its environment.

The UR+ Certified Axia80 Kit includes pre-calibrated Axia80 sensor, power cables to robot controller, interface plates, mounting hardware, assembly tool, and URCap software with demo applications. Universal Robots CB3 series robots (part number: 9105-UR-Axia80), Universal Robots URe series robots (part number: 9105-URE-Axia80).

The QC-7 Robotic Tool Changer is a two-part coupling device that enables a robot to exchange end-of-arm tools automatically. The pneumatically-actuated locking mechanism attaches the tooling to the robot and customer EOAT securely without manual intervention.

The UR+ Certified QC-7 Kit (part number: 9120-UR-007-01) is compatible with any UR and URe series robots and includes QC-7 Tool Changer (Master and Tool sides), electrical modules with 8-pin M8 connectors, lock/unlock sensing kit, cables to robot and to EOAT, robot interface plate, mounting hardware, assembly tool, and URCap software. Tool-side only Kits with M8 Module and cable to EOAT are also available: (9120-UR-007T-01).

The Compliant Deburring Blade (CDB) is a motorless deburring tool for operations such as edge deburring, chamfering, countersinking, scraping and deflashing on virtually any material. As the cutting media removes material, the compliance allows for consistent results despite variation in part size, part positioning, or robot location.

The UR+ Certified CDB Kit (part number: 9150-UR-CDB-01) is compatible with any UR and URe series robots and includes Compliant Deburring Blade tool with axial and radial compliance, Shaviv E100 industrial deburring blade, e-style holder, interface plate, mounting hardware, assembly tools, and URCap software.

Click here for more information on our AOV-10 Compliant Orbital Sander kit.

Click here for more information on our Axia80 Force/Torque Sensor kit.

Click here for more information on our QC-7 Automatic Tool Changer kit.

Click here for more information on our CDB Compliant Deburring Blade kit.

[Img1Link]
ATI's AOV-10 Compliant Orbital Sander

[Img2Link]

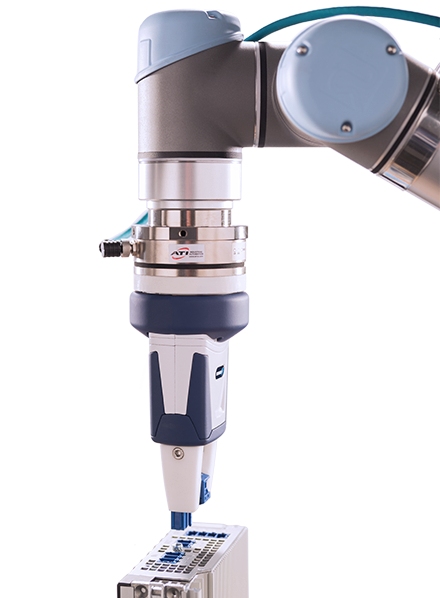

ATI's Axia80 Force/Torque Sensor enables cobots to accomplish challenging assembly tasks and more.
