Utility Coupler: UC-GH5

Home > Products > Utility Couplers > Utility Coupler Models > UC-GH5

Product Advantages

Manual coupler connects multiple utilities at one time.
(2) Mounting flats attach standard ATI utility modules.
Compact body size.
Hardened stainless steel alignment pins.
Patented latch draws in utilities.
Rated Life: 30,000 cycles.

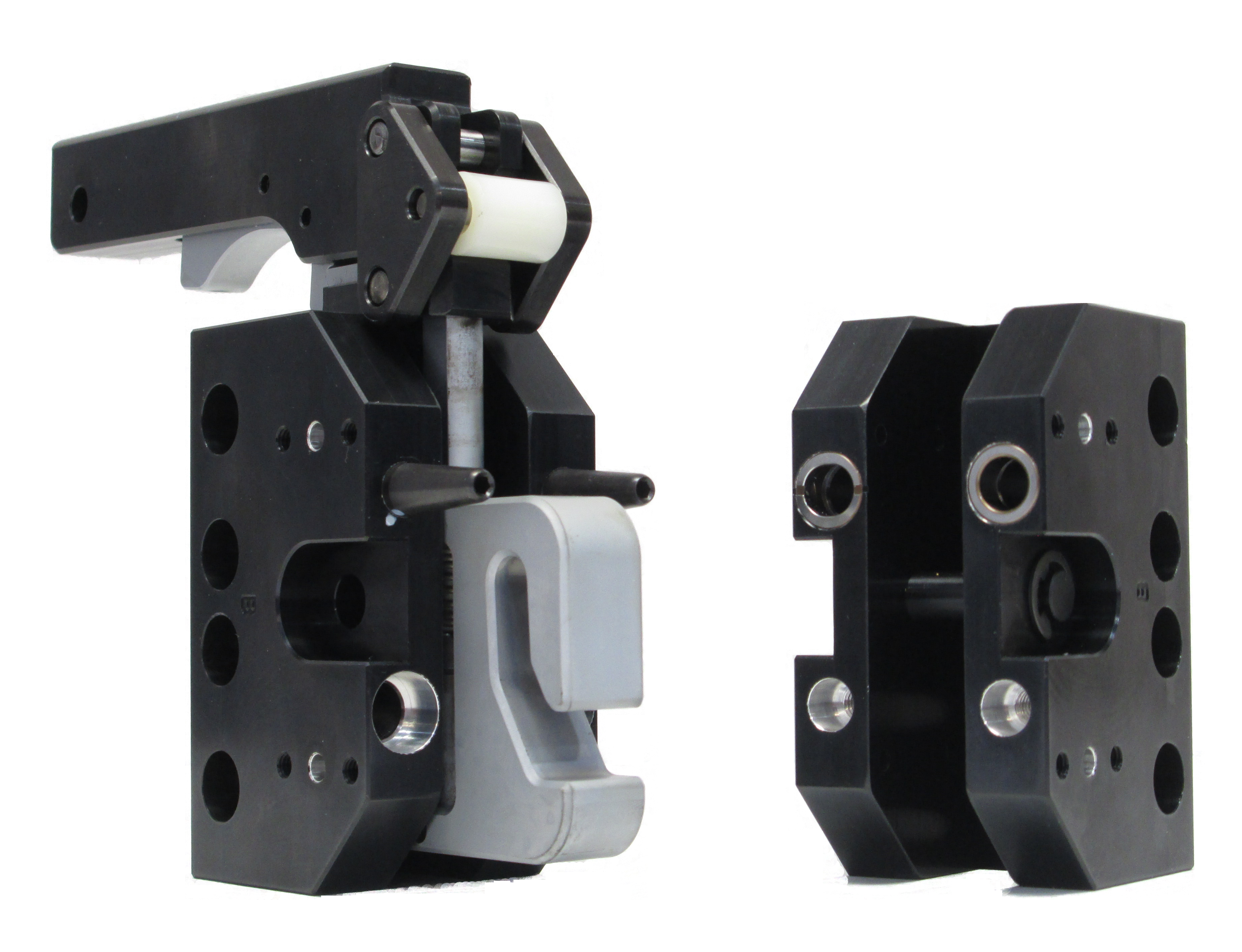

GH5 Utility Coupler

Specifications

Drawings

Manuals

3D CAD Models

Compatible Drive Cylinders

Compatible Modules

US (Standard)SI (Metric)

General Duty:

Medium

# of Integrated Ports:

Port Size:

N/A

Port Type:

N/A

# of Module Flats:

Weight:

2.71 lb

Operational Temperature Range:

-20 °F - 150 °F

*Minimum force required to couple at 80 psi (lbs)
