Air and Valve Adapters: JU110


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Other Modules > JU110





Product Description
  • Provides a pneumatic air supply to a tool changer Master for actuation of the locking mechanism.
  • Double solenoid internal valve signal pass-through.
  • G (BSPP) adapter included.
  • Lock/Unlock signal from the Control/Signal Module is transmitted via a small, internal 3-pin block interface
  • Fully-integrated solution; customer need only supply the valve adapter with a single air supply.
  • JU110 Master mounts to Flat A of the QC-110 Master plate.
  • JJ110 Tool spacer block mounts to Flat A of the QC-110 Tool plate.
  • In most cases, control of this valve is integrated with an ATI-supplied Control/Signal Module that is piggy-backed on the valve adapter.

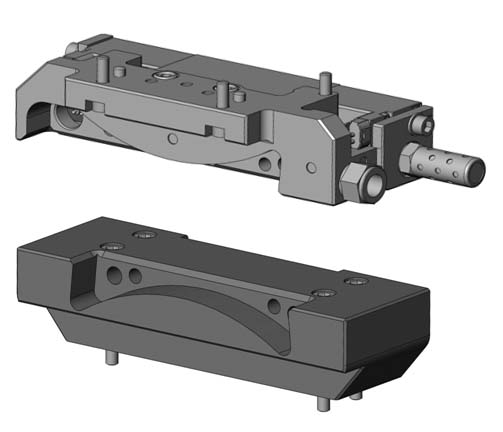

JU110 Valve Adapter (Master)
JU110 Valve Adapter (Master)

Part NumberSideNotes
9120-JU110-MMQC-110 Valve Adapter, Ledge Mount Module Compatible, w/BSPP Adapter (Double-Solenoid Valve) - Master side
9120-JJ110-TTQC-110 Valve Adapter, Ledge Mount Module Compatible - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: QC-110 Valve Adapter, Ledge Mount Module Compatible, with G (BSPP) Adapter (Double-Solenoid Valve) - Master side only.
Mates with 9120-JJ110-T spacer block.
Weight: Master x.x lbs (x.x kg)
Tool 0.90 lbs (0.41 kg)
Materials:
  • Aluminum housing.
  • Stainless steel hardware.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
