Alignment Modules: GA2
Home
>
Products
>
Robotic Tool Changers
>
Modules and Accessories
>
Modules
>
Other Modules
>
GA2
Product Description
Provides for up to 11mm misalignment capability.
Only recommended for QC-100.

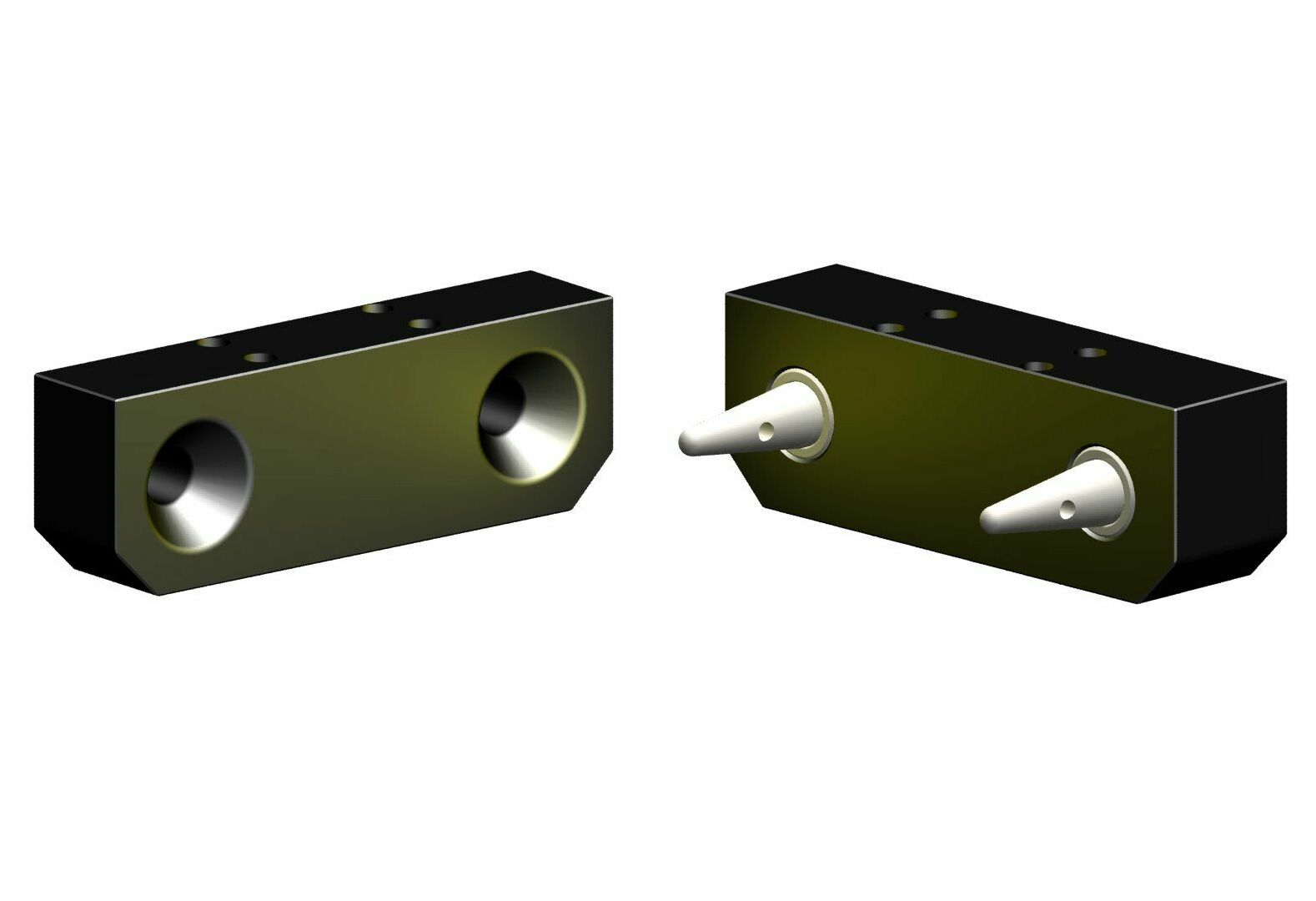

GA2 Modules (Master and Tool)
Part Number
Side
Notes
9120-GA2-M
M
Gross Alignment Module - Master side
9120-GA2-T
T
Gross Alignment Module - Tool side
Specifications
Compatible QCs
Drawings
Manuals
3D CAD Models
Description:
Gross Alignment Module
Weight:
3.3 lbs (1.5 kg)
Materials:
Aluminum Master housing
Tool steel Tool housing
Hardened stainless steel pin components.
Operational Temperature Range:
-20 °F - 150 °F (-28.9 °C - 65.6 °C)
