Radially Compliant Deburring Model RCE-710


Skip Navigation LinksHome > Products > Material Removal Tools > Robotic Material Removal Models > RCE-710



Product Advantages
  • Ideally suited for removal of parting lines and flash on parts.
  • Electric motor with speed and over-temperature feedback.
  • User friendly control interface.
  • Unit also deburrs edges, significantly reducing cycle time.
  • Variety of spindle speeds available.
  • Built-in compliance reduces robot programming.
  • Cutting force adjustable on-the-fly.
  • Mounts to robot arm on rear or side of deburring unit.
  • Utilizes standard tungsten-carbide industrial bits.
  • Minimal chattering and vibration.
  • Great replacement for hand deburring operations.

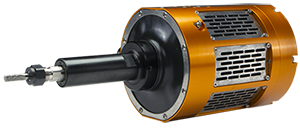

Radially Compliant Electric Motor Deburring Tool, 710 Watts, 0-13000 RPM
Radially Compliant Electric Motor Deburring Tool, 710 Watts, 0-13000 RPM

SpecificationsAccessoriesDrawingsManuals3D CAD Models


Weight (without mounts) 11.8 lb
Compliance Travel @ Collet 0.2 in
Compliance Travel Recommended 0.1 in
Compliance Force (Pneumatically Variable) 2.5 lbf - 18 lbf
Speed Range 0 - 13,000 rpm
Power Connection Intercontec 915 ytec
Signal Connection Intercontec 615 ytec
Air Connections (Compliance) 5/32 in Tube / 4 mm Tube Push To Connect
Collet 1/4" standard (others available)
Mounting Feature Side and Rear Patterns
Cooling Air 30 psi @ 6 CFM, 1/4 in / 6 mm Tube Push To Connect
