Ethernet/EtherNetIP/EtherCAT/PROFINET 100Mb Pass-Through Modules: TPS

Product Advantages

Electrical module to pass both CAT5e, 10/100-Mbit PROFINET and PROFIBUS signals along with Auxiliary Power connections.
Industry-standard female M12, 4-pin D-coded Ethernet connector for PROFINET interface.
M12, 5-pin B-coded connector for PROFIBUS interface.
Usable for PROFINET and PROFIBUS pass-through.
NOTE: TPS module may extend past the Master/Tool body on some QCs. Please consult an ATI Account Manager for more information.
NOTE: When used on the QC-110, there is a slight possibility that the air supply fittings will hit the edge of the TPS module. Please consult an ATI Account Manager for more information.

TPS Modules (Master and Tool)

Part Number	Side	Notes	EDS File

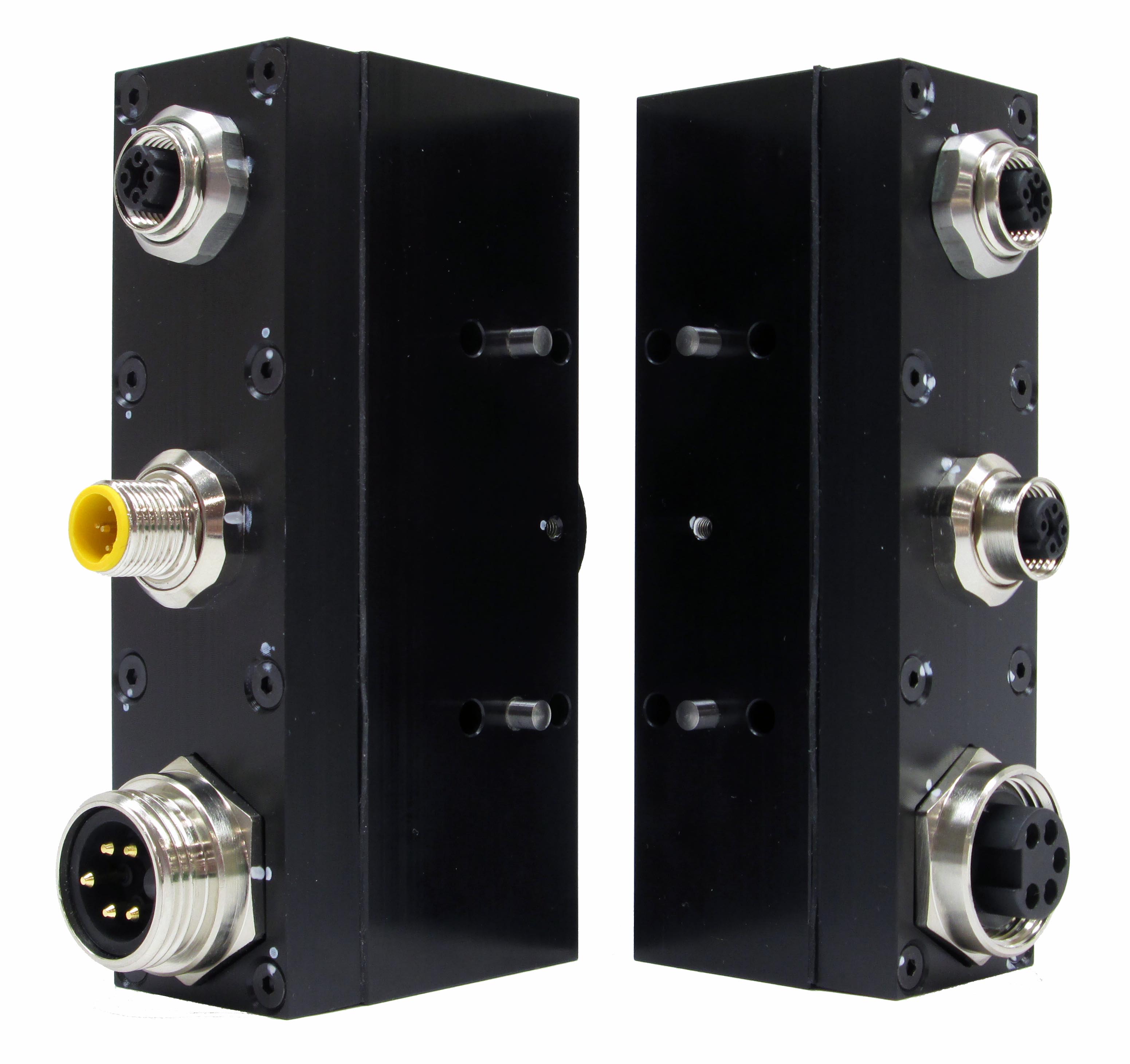

9120-TPS-M	M	Combination PROFIBUS and PROFINET Pass-through Electrical Module with Aux Power - Master side
9120-TPS-T	T	Combination PROFIBUS and PROFINET Pass-through Electrical Module with Aux Power - Tool side

Specifications

Compatible QCs

Connectors and Cables

Drawings

Manuals

3D CAD Models

Description:

Combination PROFIBUS and PROFINET Pass-through Electrical Module with Aux Power

Weight:

Master 1.45 lbs (0.66 kg)
Tool 1.09 lbs (0.49 kg)

Materials:

# Pins:

Elec. Rating:

PROFINET Circuit - 2 Amp
PROFIBUS Circuit - 4 Amp
Aux Power Circuit - 4 Amp

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
