Description: |

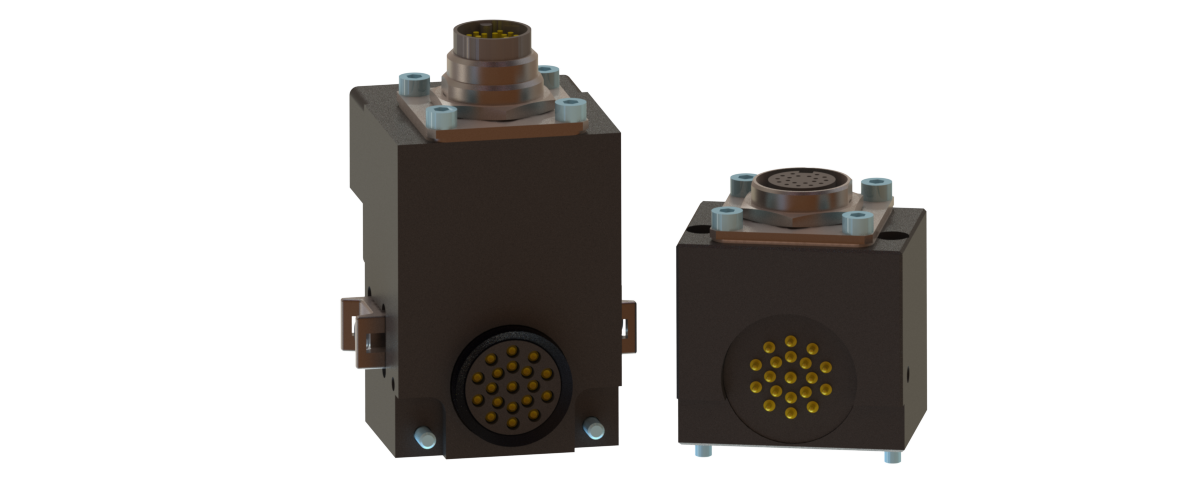

(1) 19-pin Turck connector and (2) 3-pin Pico connectors Electrical Module, 3 Amp/50VDC |
|
Weight: |
Master 0.35 lbs (1.16 kg)
Tool 0.25 lbs. (0.11 kg) |
|
Materials: |
- Anodized aluminum housing.
- Precious-metal-plated pins.
- Nitrile seal(s).
|
|
Elec. Rating: |
3 Amp/50VDC |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
|
Cables
|
| 9630-20-KF19HM KF19T.pdf |
KF19H-M,KF19-T Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-KF19H-M |
Master side electrical module with (1) 19pin Turck connector, (2) 3-pin Pico connector
|
| 9120-KF19-T |
19-Pin, 3 Amp/50VAC electrical module with M16-Style Connector, Tool Side
|
|
