Description: |

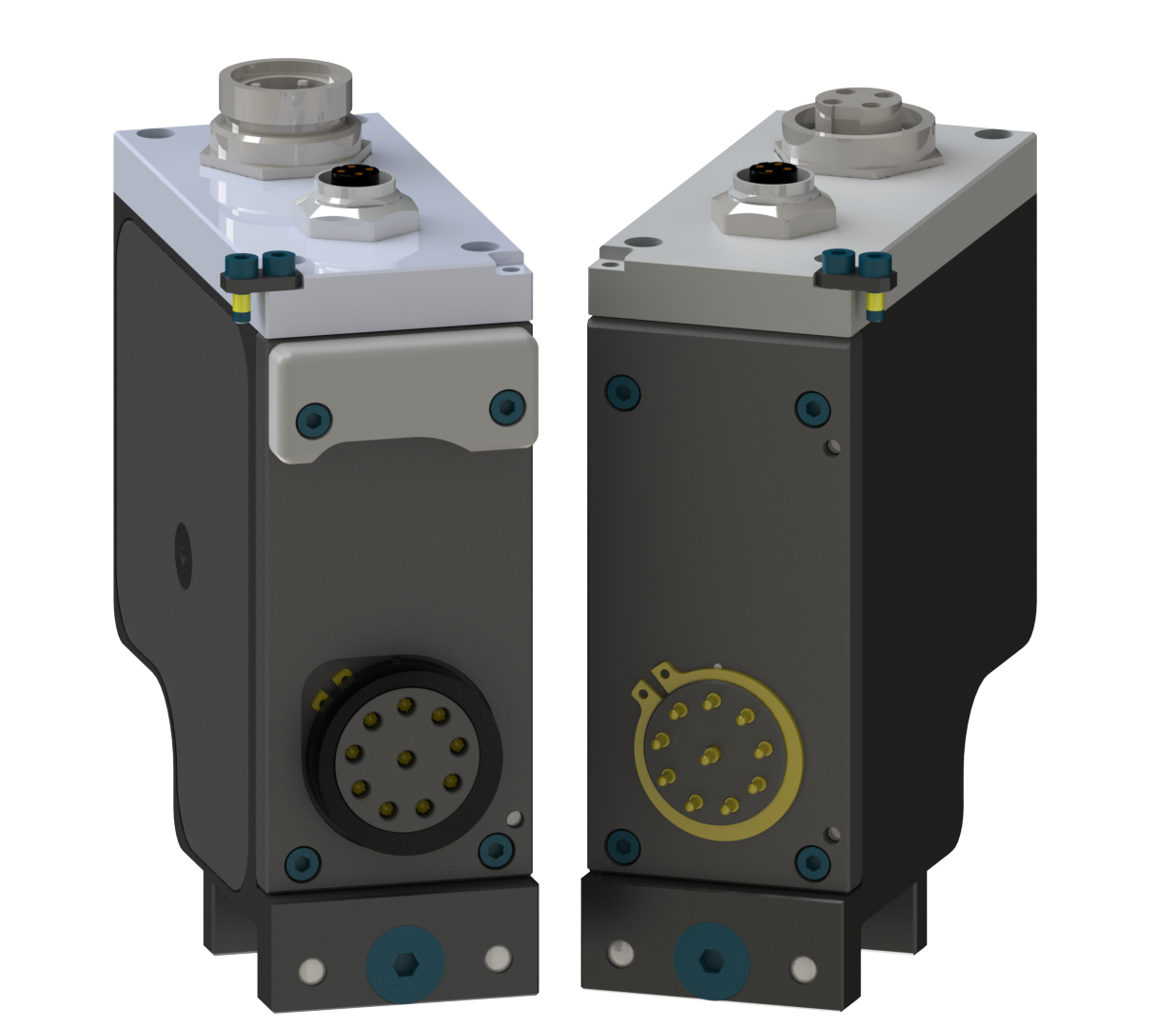

Radial Electrical Module with 4-Pin Female D-Coded M12 Ethernet Connector and 4-Pin Minifast Power Connector Pass-through |
|
Weight: |
Master 1.51 lbs (0.68 kg)
Tool 1.47 lbs (0.67 kg) |
|
Materials: |
- Anodized aluminum housing
- Rhodium-plated spring and contact pins
- Nitrile seals.
|
|
Elec. Rating: |
Ethernet Circuit - 2 Amp
Aux Power Circuit - 6 Amp |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
QC-113
| |
|
|
Flats B, C, D
Apps Approval
Requires adapter rails. Rails with more than 4 positions may interfere with modules on adjacent flats. Will extend above Master and Tool body. |
| Yes |
|
QC-210
| |
|
|
Flats B, C, D
Apps Approval
Requires adapter rails. Rails with more than 4 positions may interfere with modules on adjacent flats. Will extend above Master and Tool body. |
| Yes |
|
QC-213
| |
|
|
Flats B, C, D
Apps Approval
Requires adapter rails. Rails with more than 4 positions may interfere with modules on adjacent flats. Will extend above Master and Tool body. |
| Yes |
|
QC-310
| |
|
|
Flats B, C, D
Apps Approval
Requires adapter rails. Rails with more than 4 positions may interfere with modules on adjacent flats. Will extend above Master and Tool body. |
| Yes |
|
QC-313
| |
|
|
Flats B, C, D
Apps Approval
Requires adapter rails. Rails with more than 4 positions may interfere with modules on adjacent flats. Will extend above Master and Tool body. |
| Yes |
|
QC-510
| |
|
|
Flats B, C, D
Apps Approval
Requires adapter rails. Rails with more than 4 positions may interfere with modules on adjacent flats. Will extend above Master and Tool body. |
| Yes |
|
QC-1210
| |
|
|
Flats B, C, D, E, F
Apps Approval
Requires adapter rails. Rails with more than 4 positions may interfere with modules on adjacent flats. Will extend above Master and Tool body. |
| Yes |
|
QC-1310
| |
|
|
Flats B, C, D, E, F, G, H, J
Apps Approval
Requires adapter rails. Rails with more than 4 positions may interfere with modules on adjacent flats. Will extend above Master and Tool body. |
| Yes |
|
QC-1510
| |
|
|
Flats B, C, D, E, F, G, H, J
Apps Approval
Requires adapter rails. Rails with more than 4 positions may interfere with modules on adjacent flats. Will extend above Master and Tool body. |
| Yes |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-EN56.pdf |
EN56 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9121-EN56-M |
Radial EN56 Master Module with 4-Pin Female D-Coded M12 Ethernet Connector and 4-Pin Male Minifast Power Connector Pass Thru
|
| 9121-EN56-T |
Radial EN56 Tool Module with 4-Pin Female D-Coded M12 Ethernet Connector and 4-Pin Female Minifast Power Connector Pass Thru
|
|
