Description: |

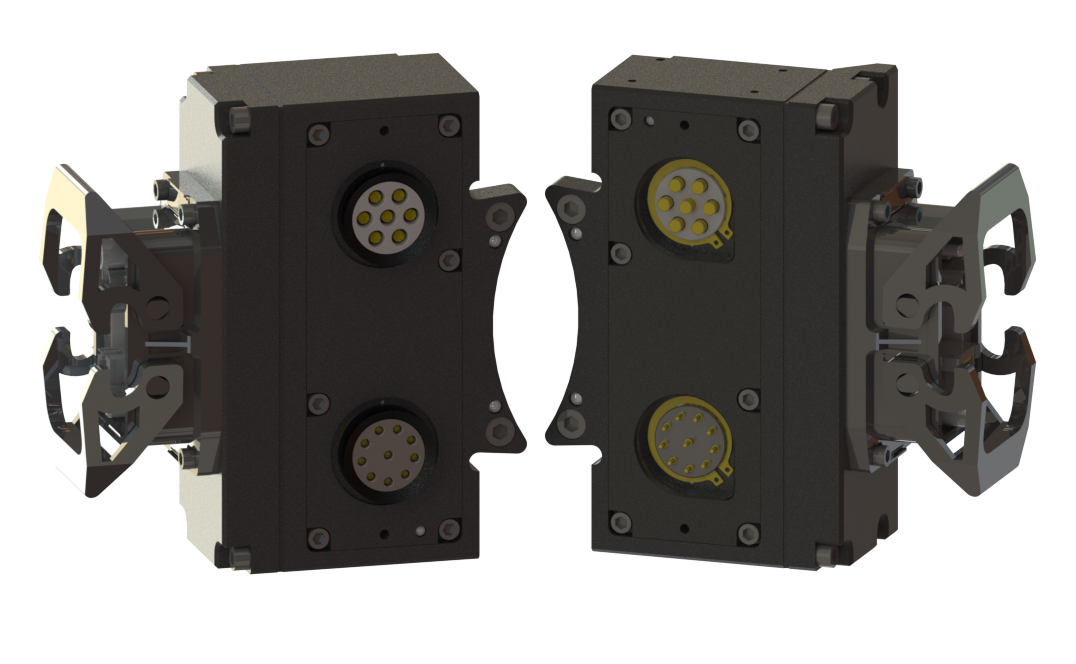

Servo Module with (1) Phoenix Contact HEAVYCON EVO Connector with (1) 5-Pin Power Insert and (1) RJ45 Signal Insert |
|
Weight: |
Master 2.75 lbs (1.25 kg)
Tool 2.4 lbs (1.09 kg) |
|
Materials: |
- Aluminum housings
- Delrin® fitting plates
- Nitrile seals
- Precious-metal-plated contacts
- Delrin® blocks
|
|
# Pins: |
Power - 7
Signal - 10
|
|
Elec. Rating: |
Power – 10 Amp/400V
Signal – 1 Amp/50V |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-EA12.pdf |
EA12 Customer Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
No 3D models for this product are currently available. See your Account Representative for more information.
|
